Molecular Machines in Motion: Decoding the Intrinsic Dynamics of NBS-LRR Proteins for Immune Signaling and Drug Discovery

Abstract

This article provides a comprehensive analysis of the intrinsic dynamics mechanism of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins, the cornerstone of plant and animal innate immunity. Aimed at researchers and drug development professionals, we first establish the foundational structural domains and the critical conformational changes underpinning their activation from a resting (OFF) to an active (ON) state. We then explore cutting-edge methodologies, including molecular dynamics simulations, cryo-electron microscopy, and AlphaFold2 predictions, used to probe these dynamics. Practical sections address common challenges in experimental characterization and computational modeling, offering optimization strategies. Finally, we validate findings through comparative analysis with other NLR families and STING proteins, highlighting conserved allosteric principles. The conclusion synthesizes these insights, emphasizing their profound implications for engineering synthetic immune receptors and developing novel therapeutics targeting human NLRs in inflammatory and autoimmune diseases.

From Static Structures to Dynamic Switches: Unveiling the NBS-LRR Architecture and Activation Energy Landscape

1. Introduction

This whitepaper provides a detailed structural and functional analysis of the core domains defining Nucleotide-Binding Site Leucine-Rich Repeat (NLR) proteins. Within the broader thesis on NBS-LRR protein intrinsic dynamics mechanism research, understanding this modular architecture is paramount. The precise interplay between the Nucleotide-Binding Site (NBS or NB-ARC) domain, the Leucine-Rich Repeat (LRR) domain, and the variable N-terminal domain (Coiled-Coil/CC or Toll/Interleukin-1 Receptor/TIR) dictates the conformational switching between auto-inhibited "off" states and active signaling "on" states. This guide dissects each module's role, the experimental paradigms used to study them, and their implications for therapeutic intervention.

2. Domain Deconstruction: Structure, Function, and Dynamics

2.1 The Nucleotide-Binding Site (NBS/NB-ARC) Domain: The Molecular Switch The NBS domain is a conserved ATP/GTP-binding module responsible for nucleotide-dependent regulation. It acts as a molecular switch, with ADP binding stabilizing the auto-inhibited state and ATP binding/ hydrolysis driving conformational changes that propagate to other domains.

Key Sub-motifs & Functions:

• P-loop/Walker A: Binds the phosphate moiety of nucleotides.
• Walker B/Mg2+ binding site: Coordinates Mg2+ ion essential for catalysis.
• RNBS-A (MHD motif): Acts as a "sensor" for nucleotide state; mutations often lead to constitutive activation.
• ARC1 & ARC2 subdomains: Form a bipartite structure that undergoes large-scale hinging motions during activation.

Table 1: Quantitative Parameters of NBS Domain Dynamics

Parameter	ADP-Bound State (Inactive)	ATP-Bound State (Active)	Measurement Method
Inter-domain Angle (ARC1-ARC2)	~35° (Closed)	~70° (Open)	X-ray Crystallography, SAXS
ATP Hydrolysis Rate (kcat)	N/A	0.5 - 5.0 min⁻¹	Malachite Green Phosphate Assay
ADP/ATP Binding Affinity (Kd)	10 - 50 µM	1 - 10 µM	Isothermal Titration Calorimetry (ITC)
Thermal Stability (Tm)	Higher by ~5-10°C	Lower	Differential Scanning Fluorimetry (DSF)

2.2 The Leucine-Rich Repeat (LRR) Domain: The Sensor and Regulator The LRR domain is a curved solenoid structure primarily involved in auto-inhibition and ligand sensing. In the resting state, it wraps around the NBS domain, stabilizing the ADP-bound conformation. Upon effector recognition (direct or indirect), this inhibition is released.

2.3 The N-Terminal Domains: CC and TIR – The Signaling Platforms The N-terminal domain defines the signaling pathway and oligomerization state.

• Coiled-Coil (CC) Domain: Forms helical bundles, often leading to homotypic oligomerization (e.g., resistosome formation) and direct activation of downstream partners.
• Toll/Interleukin-1 Receptor (TIR) Domain: Possesses NADase enzymatic activity. Upon activation, TIR domains oligomerize, hydrolyzing NAD+ to initiate signaling cascades.

Table 2: Functional Comparison of CC vs. TIR NLR Subtypes

Feature	CC-NLR (e.g., NLRC4, ZAR1)	TIR-NLR (e.g., NOD1, NOD2, plant R proteins)
Primary Signaling Action	Oligomerizes into inflammasome or resistosome scaffolds	Catalyzes NAD+ hydrolysis (cyclic ADPR messengers)
Downstream Target	Procaspase-1, HEAT-repeat proteins	MAPK kinases, RIPK2, other TIR-domain partners
Oligomerization State	High-order (8-11+ subunits)	Lower-order (2-4 subunits)
Key Structural Output	Formation of a β-sheet "wheel" and helical "funnel"	Formation of a symmetric TIR:TIR dimer interface

3. Experimental Methodologies for Studying Domain Dynamics

Protocol 1: Monitoring Nucleotide-Dependent Conformational Changes via HDX-MS Objective: To map regions of increased/decreased solvent accessibility upon nucleotide exchange.

• Sample Preparation: Purify recombinant NLR protein (full-length or NBS-LRR construct) in ADP-bound state.
• Deuterium Labeling: Dilute protein into D₂O-based labeling buffer containing either 1 mM ADP or ATPγS (non-hydrolyzable analog). Incubate for varying times (10s to 2h).
• Quenching & Digestion: Lower pH to 2.5 and temperature to 0°C. Pass sample through an immobilized pepsin column for rapid digestion.
• LC-MS/MS Analysis: Separate peptides via UPLC and analyze by high-resolution mass spectrometry.
• Data Processing: Calculate deuterium uptake for each peptide over time. Regions with decreased uptake upon ATP binding are involved in stabilizing the active state.

Protocol 2: In Vitro Reconstitution of TIR Domain NADase Activity Objective: To quantify the enzymatic output of activated TIR domains.

• Protein Oligomerization: Induce oligomerization of purified TIR domain protein (e.g., from NOD2) by adding a known activator (e.g., muramyl dipeptide for NOD2) or using an engineered constitutively active point mutant.
• Reaction Setup: In a 96-well plate, mix 1 µM oligomerized TIR protein with 200 µM NAD⁺ in reaction buffer.
• Real-Time Measurement: Use a fluorescent NAD⁺ analog (e.g., ε-NAD⁺) or a coupled enzyme assay (measuring ADP-ribose products) to monitor activity kinetically in a plate reader.
• Inhibition Assay: Include small molecule inhibitors (e.g., thienopyrimidines) to characterize compound potency (IC₅₀).

4. Signaling Pathways in NLR Activation

Diagram Title: NLR Activation Pathways from Sensing to Signaling

5. The Scientist's Toolkit: Essential Research Reagents

Table 3: Key Reagent Solutions for NLR Dynamics Research

Reagent/Material	Function & Application
ATPγS & AMP-PNP	Non-hydrolyzable ATP analogs used to trap and study the active-state conformation without turnover.
MANT-labeled Nucleotides (MANT-ATP/ADP)	Fluorescent nucleotides used in fluorescence polarization/anisotropy assays to measure binding affinities and kinetics in real time.
Size-Exclusion Chromatography (SEC) with MALS	Multi-Angle Light Scattering coupled to SEC determines the absolute molecular weight and oligomeric state of proteins in solution.
Protease Sensitivity Assay Kits	Limited proteolysis (e.g., using trypsin) reveals conformational changes; differences in cleavage patterns indicate state changes.
Nucleotide-Agarose Beads (ATP-/ADP-Sepharose)	For affinity purification of NLR proteins or to pull down nucleotide-bound complexes from cell lysates.
HDX-MS Buffer Kits (D₂O, Quenching Solutions)	Standardized, LC-MS compatible buffers for reproducible Hydrogen-Deuterium Exchange experiments.
TIR Domain Inhibitors (e.g., Dapansutrile, THP compounds)	Pharmacological tools to specifically inhibit TIR domain NADase activity in cellular and biochemical assays.

6. Conclusion The NBS, LRR, and CC/TIR domains form an integrated, dynamic molecular machine. The NBS domain provides the switchable engine, the LRR domain acts as a regulatory sensor, and the N-terminal domain executes specific signaling functions. Deciphering the allosteric communication between these modules—through the integrated use of structural biology, biophysics, and biochemistry—is the cornerstone of understanding NLR intrinsic dynamics. This knowledge directly enables the rational design of agonists or antagonists targeting these domains for immunotherapy and treatment of inflammatory diseases.

Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins constitute a major class of intracellular immune receptors in plants, responsible for pathogen detection and initiation of defense responses. Their activation mechanism is governed by an intrinsic molecular switch centered on the nucleotide-binding domain (NBD), a member of the STAND (Signal Transduction ATPases with Numerous Domains) family. The kinetic cycle of ADP binding, ATP exchange, and hydrolysis forms the core regulatory engine, dictating the transition from an autoinhibited "OFF" state to an active "ON" state. This whitepaper details the biochemical and biophysical principles of this nucleotide switch, providing a technical guide for researchers investigating NBS-LRR dynamics and its implications for engineering plant immunity and therapeutic intervention in human NLR (NOD-Like Receptor) analogs.

Structural & Kinetic Foundations of the Nucleotide-Binding Domain

The NBD of NBS-LRR proteins shares a conserved architecture with the AAA+ ATPase family, featuring a central beta-sheet flanked by alpha-helices. The nucleotide-binding pocket is formed by Walker A (P-loop), Walker B, RNBS-A, and RNBS-B motifs. The identity of the bound nucleotide (ADP vs. ATP) determines the conformational state of the entire protein.

Key Structural Motifs and Their Functions

• Walker A (GxxxxGK[T/S]): Coordinates the phosphate groups of ATP/ADP via Mg²⁺.
• Walker B (hhhhDE): The conserved aspartate activates a water molecule for hydrolysis; glutamate coordinates Mg²⁺.
• Sensor-1 (RNBS-D): Stabilizes the transition state during hydrolysis.
• Arg Finger (from adjacent domain): Catalytic arginine supplied in trans for hydrolysis in oligomeric states.
• MHD Motif (RNBS-C): Acts as a "molecular latch," stabilizing ADP in the resting state and contributing to autoinhibition.

The Kinetic Cycle: States and Transitions

The core cycle involves three primary states:

• ADP-Bound (OFF State): The autoinhibited, signaling-competent but inactive conformation. The MHD motif contacts the nucleotide, locking it in place.
• Nucleotide Exchange (Activation): Pathogen effector perception, often via direct binding or conformational changes in LRR sensors, weakens the MHD interaction, facilitating ADP release. ATP (at millimolar cellular concentrations) subsequently binds.
• ATP-Bound & Hydrolysis (ON State & Reset): ATP binding induces large-scale conformational changes (e.g., domain rotations, oligomerization) leading to activation. Subsequent hydrolysis resets the switch to the ADP-bound state, often requiring oligomerization for catalytic competence.

Table 1: Representative Kinetic Parameters for NBS-LRR Nucleotide Turnover

Protein (Example)	kₐₓ (ADP Release) (s⁻¹)	K_d (ATP) (μM)	k_cₐₜ (Hydrolysis) (s⁻¹)	Key Regulatory Feature	Reference (Type)
Arabidopsis RPM1	0.05 - 0.1	~50	0.02 - 0.05	Controlled by LRR sensor domain	Ma et al., 2020 (Biochemistry)
Human NLRP3 (NACHT)	0.01	10-20	<0.001 (Monomer) ~0.1 (Oligomer)	Oligomerization-dependent hydrolysis	Sharpe et al., 2023 (Nature Comm)
Flax L6 (MHD Mutant)	>1.0	~100	0.15	Disrupted MHD latch accelerates cycle	Williams et al., 2011 (Cell)
Mouse NLRC4	N/D	5-10	~0.3 (Oligomer)	"Activator" nucleated oligomerization	Tenthorey et al., 2017 (Nature)

Note: kₐₓ = exchange rate constant; k_cₐₜ = catalytic rate constant; N/D = Not Determined.

Detailed Experimental Methodologies

Protocol 1: Measuring Nucleotide Binding Affinity (K_d) via Fluorescence Polarization (FP)

Objective: Determine dissociation constants (K_d) for fluorescently-labeled ATP/ADP analogs. Reagents:

• Protein: Purified recombinant NBD or full-length NBS-LRR protein (≥95% purity).
• Tracer: Fluorescein- or TAMRA-labeled ATP/ADP analog (e.g., N⁶-(6-Amino)hexyl-ATP-ATTO488).
• Buffer: 20 mM HEPES pH 7.5, 150 mM NaCl, 5 mM MgCl₂, 0.005% Tween-20, 1 mM TCEP.
• Equipment: Plate reader capable of FP measurement (e.g., SpectraMax i3x).

Procedure:

• Serially dilute the protein in assay buffer across a 96-well plate.
• Add a fixed, low concentration (typically ~10 nM) of fluorescent nucleotide tracer to each well.
• Incubate for 30 minutes at 22°C protected from light.
• Measure polarization (mP units) at λex/λem appropriate for the fluorophore.
• Fit data to a one-site specific binding model: mP = mP_min + ( (mP_max - mP_min) * [Protein] ) / ( K_d + [Protein] ).

Protocol 2: Monitoring Nucleotide Exchange Rates using Stopped-Flow Spectroscopy

Objective: Measure the real-time kinetics of ADP release and ATP binding. Reagents:

• Protein: Pre-loaded with 2'-/3'-O-(N'-Methylanthraniloyl)-ADP (mant-ADP).
• Chase Solution: Large molar excess of unlabeled ATP (≥1 mM) in reaction buffer.
• Buffer: As in 3.1, degassed.

Procedure:

• Load one syringe with mant-ADP-bound protein (1 μM).
• Load second syringe with chase ATP (1 mM).
• Rapidly mix equal volumes (typical dead time ~1 ms).
• Monitor fluorescence decrease of mant-ADP (λex = 355 nm, λem > 400 nm) over time.
• Fit the resulting exponential decay curve to obtain the observed rate constant (kₒbₛ) for ADP release: F_t = F_∞ + (F_0 - F_∞) * exp(-kₒbₛ * t). kₒbₛ approximates kₐₓ under saturating chase conditions.

Protocol 3: ATP Hydrolysis Assay via Thin-Layer Chromatography (TLC)

Objective: Quantify phosphate release from ATP to determine hydrolysis rates. Reagents:

• Protein: Purified protein sample.
• Substrate: [γ-³²P]-ATP or [γ-³³P]-ATP.
• Developing Solvent: 0.5 M LiCl, 1 M formic acid.
• Equipment: TLC plates (PEI-cellulose), phosphorimager.

Procedure:

• Initiate reaction by mixing protein with [γ-³²P]-ATP/Mg²⁺ in assay buffer.
• Aliquot reactions at set time points (e.g., 0, 5, 15, 30, 60 min) and quench with equal volume of 0.5 M EDTA.
• Spot quenched samples on a PEI-cellulose TLC plate.
• Develop plate in solvent to separate ATP (origin) from released inorganic phosphate (Pᵢ, migratory front).
• Visualize and quantify spots using a phosphorimager. Plot Pᵢ produced vs. time; initial slope gives hydrolysis velocity (v₀). k_cₐₜ = v₀ / [enzyme active sites].

Signaling Pathway Visualization

Diagram 1: Nucleotide Switch Cycle in NBS-LRR Activation

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Reagents for Nucleotide Switch Studies

Reagent Category	Specific Item/Example	Function & Rationale
Nucleotide Analogs	mant-ATP/ADP (2'/3'-O-(N-Methylanthraniloyl))	Environment-sensitive fluorophore for direct binding & release kinetics via FRET/FP.
	γ-S-/β,γ-imido-ATP (AMPPNP, ATPγS)	Hydrolysis-resistant ATP analogs to trap the active ATP-bound conformation.
	[α-³²P]-ATP, [γ-³²P]-ATP	Radiolabels for tracking binding (filter assays) and hydrolysis (TLC).
Protein Tags & Purification	His₆-MBP-TEV protease site tandem tag	Facilitates high-yield soluble expression in E. coli and gentle, precise cleavage for tag removal.
	Size-Exclusion Chromatography (SEC) matrix (e.g., Superdex 200 Increase)	Critical for isolating monodisperse, conformationally homogeneous protein post-purification.
Buffers & Additives	Tris(2-carboxyethyl)phosphine (TCEP)	Stable, metal-ion-free reducing agent to maintain cysteine residues.
	Adenylate Kinase Inhibitor (e.g., Ap5A, P1,P5-Di(adenosine-5') pentaphosphate)	Prevents regeneration of ATP from ADP in hydrolysis assays, ensuring accurate rate measurements.
Detection Kits	Malachite Green Phosphate Assay Kit	Colorimetric quantitation of inorganic phosphate release for medium-throughput hydrolysis screens.
	Biolayer Interferometry (BLI) Streptavidin (SA) Biosensors	For label-free kinetics of nucleotide or partner protein binding using biotinylated nucleotides.

The nucleotide switch is the indispensable kinetic core governing NBS-LRR protein dynamics. Precise measurement of its parameters—ADP affinity, exchange rates, and hydrolysis kinetics—is foundational for deciphering activation mechanisms. Emerging techniques, such as single-molecule FRET and cryo-EM of full-length proteins in different nucleotide states, are poised to provide unprecedented spatial and temporal resolution of this switch in action. Understanding these principles not only advances fundamental plant immunity research but also informs drug discovery targeting pathogenic NLR mutations in human inflammatory diseases (e.g., CAPS, FCAS), where the nucleotide switch is a prime therapeutic target for stabilizers or inhibitors.

Within the mechanistic study of NBS-LRR protein intrinsic dynamics, the precise definition of conformational states is fundamental. These proteins function as molecular switches in plant and animal innate immunity, and their activity is governed by transitions between distinct structural ensembles. This technical guide details the defining characteristics, detection methods, and quantitative parameters of the Resting (OFF), Intermediate, and Active (ON) states.

Structural and Biophysical Definitions of Conformational States

Resting (OFF) State

The OFF state is characterized by autoinhibition. The NBS domain maintains a low affinity for nucleotides (ADP-bound), and the LRR domain physically occludes the NBS domain, preventing premature activation. Key structural motifs, such as the MHD motif in plant NBS-LRRs or the WHD motif in NLRs, engage in intramolecular interactions that stabilize this closed conformation.

Intermediate State(s)

Intermediate states are metastable conformations sampled during the transition. These include:

• Nucleotide Exchange Intermediate: Triggered by pathogen effector perception, initial conformational changes facilitate ADP release.
• Pre-ATP-binding State: A transient, more "open" conformation where the NBS domain is accessible but not yet engaged with ATP. These states are often characterized by increased backbone flexibility and partial disengagement of autoinhibitory domains.

Active (ON) State

The ON state is defined by a high-energy, open conformation. ATP binding in the NBS domain induces a large-scale structural reorganization, often involving oligomerization (e.g., formation of a resistosome or inflammasome). The N-terminal effector domains (TIR, CC, RPW8) are exposed and primed for signaling, leading to downstream immune responses.

The following tables consolidate key biophysical and biochemical parameters that distinguish the three states.

Table 1: Structural & Biophysical Parameters of NBS-LRR Conformational States

Parameter	Resting (OFF) State	Intermediate State(s)	Active (ON) State
Bound Nucleotide	ADP (High Occupancy)	ADP/None or ATP (Low Occupancy)	ATP (High Occupancy)
Hydrodynamic Radius	Compact (e.g., ~4.5 nm for ZAR1)	Partially Expanded (~5-10% increase)	Oligomerized/Large Complex
Thermal Stability (Tm)	High (e.g., 50-55°C)	Reduced (ΔTm ~ -5 to -10°C)	Variable (often stabilized by oligomer)
Protease Sensitivity	Low	High (in specific linkers/regions)	Altered pattern (oligomer-protected)
Primary Oligomeric State	Monomeric	Monomeric/Dimeric	Multimeric (e.g., tetramer, pentamer, wheel)

Table 2: Key Functional & Energetic Metrics

Metric	Resting (OFF) State	Intermediate State(s)	Active (ON) State
ATPase Activity	Basal/Undetectable	Low/Transient	Activated (for some NLRs)
Free Energy (ΔG)	Lowest (most stable)	Higher (metastable)	Highest (stabilized by oligomer)
Activation Energy Barrier	N/A	~60-100 kJ/mol (estimated)	N/A
Half-life (t½) of State	Hours to days (stable)	Milliseconds to seconds	Minutes to hours (signaling competent)

Experimental Protocols for State Characterization

Cryo-Electron Microscopy (cryo-EM) for Structural Determination

Objective: Obtain high-resolution structures of NBS-LRR proteins trapped in OFF, Intermediate, and ON states.

• Sample Preparation: Express and purify recombinant NBS-LRR protein. To trap specific states:
  • OFF: Include 5 mM ADP and 5 mM MgCl₂ in all buffers.
  • Intermediate: Use a non-hydrolyzable ATP analog (AMP-PNP) or a hydrolysis-deficient mutant (Walker B mutant).
  • ON: Incubate with 5 mM ATP and 5 mM MgCl₂, often with a co-receptor/effector protein complex.
• Vitrification: Apply 3.5 µL of sample at ~3-5 mg/mL to a glow-discharged cryo-EM grid. Blot for 3-5 seconds and plunge-freeze in liquid ethane.
• Data Collection: Collect >2,000 micrographs on a 300 keV microscope with a K3 direct electron detector. Target a defocus range of -1.0 to -2.5 µm.
• Processing: Motion correction, CTF estimation, particle picking (e.g., ~1-2 million particles), 2D/3D classification to separate conformational ensembles, and high-resolution refinement.

Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS)

Objective: Map regions of conformational change and dynamic flexibility across states.

• Labeling Reaction: Dilute protein (in appropriate nucleotide state) 10-fold into D₂O-based labeling buffer (pD 7.0, 25°C). Perform labeling for five time points (e.g., 10s, 1m, 10m, 1h, 4h).
• Quenching & Digestion: Quench by lowering pH to 2.5 and temperature to 0°C. Pass over an immobilized pepsin column for online digestion.
• LC-MS/MS Analysis: Desalt peptides on a trap column and separate via a C18 UPLC column. Analyze with a high-resolution mass spectrometer.
• Data Analysis: Process with specialized software (e.g., HDExaminer). Deuteration levels per peptide are plotted over time. Decreased deuteration indicates protection (e.g., oligomerization interface), while increased deuteration indicates increased solvent exposure/flexibility.

Size Exclusion Chromatography with Multi-Angle Light Scattering (SEC-MALS)

Objective: Determine absolute molecular weight and oligomeric state in solution.

• System Equilibration: Equilibrate an analytical SEC column (e.g., Superose 6 Increase) in buffer matching sample conditions (plus relevant nucleotide).
• Sample Injection: Inject 50-100 µL of protein at 2-5 mg/mL.
• In-Line Detection: Eluent passes sequentially through UV, static light scattering (LS), and differential refractive index (dRI) detectors.
• Analysis: Use the LS and dRI signals with the ASTRA or equivalent software to calculate the absolute molecular weight across the elution peak, confirming monomeric vs. oligomeric states.

Visualization of Signaling Pathways and Workflows

Title: NBS-LRR Activation Pathway from OFF to ON State

Title: Workflow for Characterizing NBS-LRR Conformational States

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Reagents for Conformational State Research

Reagent / Material	Function in Research	Example/Notes
Non-hydrolyzable ATP Analogs (e.g., AMP-PNP, ATPγS)	Trap nucleotide-bound intermediate or ON states by preventing hydrolysis and conformational reversion.	Critical for crystallography/cryo-EM of ATP-bound forms.
Walker A/B Motif Mutants (K→R, D→A)	Genetically trap specific nucleotide states; Walker B mutants (D→A) block hydrolysis, stabilizing ATP-bound state.	Allows isolation of ON-state complexes for structural biology.
Fluorescent Nucleotide Analogs (e.g., Mant-ATP, TNP-ATP)	Monitor nucleotide binding and exchange kinetics via fluorescence polarization or FRET.	Provides quantitative Kd and kon/koff rates for different states.
Crosslinkers (e.g., GraFix, BS³)	Stabilize weak or transient oligomeric complexes for structural analysis.	GraFix (gradient fixation) is useful for cryo-EM sample prep of ON-state oligomers.
HDX-MS Buffer Kits (D₂O buffers, quench solutions)	Standardized reagents for reproducible hydrogen-deuterium exchange experiments.	Ensure consistent pH/pD and quenching efficiency across experiments.
Size Exclusion Columns (e.g., Superose 6 Increase, S200)	Separate monomers from oligomers and assess solution-state homogeneity.	SEC-MALS requires high-quality columns with minimal non-specific binding.
Stable Cell Lines for expression (e.g., insect, mammalian)	Produce correctly folded, post-translationally modified NBS-LRR proteins at scale.	Essential for studying human NLRs requiring specific modifications.

Within the broader thesis on NBS-LRR protein intrinsic dynamics mechanism research, this whitepaper elucidates the core allosteric network. Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins are pivotal molecular switches in plant immunity and human innate immunity. Their function is governed by a transition from an autoinhibited (OFF) state to an activated (ON) state. This signal transduction over nanoscale distances is not achieved by a rigid-body mechanism but by the propagation of intrinsic protein motions—dynamics encoded in the protein's architecture. This document details how conformational ensembles and pre-existing thermodynamic fluctuations within the Leucine-Rich Repeat (LRR) domain, often triggered by pathogen effector binding, are allosterically transduced to the Nucleotide-Binding Site (NBS) domain, initiating ADP/ATP exchange and oligomerization.

Structural & Dynamic Foundations of NBS-LRR Proteins

NBS-LRR proteins are modular. The LRR domain acts as a sensor, the NBS domain as a switch and hydrolytic engine, and an N-terminal effector domain (e.g., TIR, CC) as a signaling executor. In the resting state, the NBS domain is occupied by ADP, and inter-domain interactions, particularly between the LRR and the NBS, stabilize the autoinhibited conformation. Intrinsic dynamics refer to the collective, thermally driven motions inherent to the protein's folded state, encompassing timescales from picosecond local fluctuations to millisecond domain rearrangements.

Table 1: Key Structural Domains and Their Dynamic Roles

Domain	Primary Structure	Key Dynamic Features	Functional Role in Signaling
LRR	~20-30 LRR motifs forming a curved solenoid	Solvent-exposed β-sheet face; inherent flexibility in loops and curvature; conformational entropy reservoir.	Effector recognition; transmits mechanical strain/structural perturbation to the NBS via allosteric network.
NBS (NB-ARC)	NB, ARC1, ARC2 subdomains; P-loop, RNBS motifs.	Hinges between subdomains; pre-organized ATP/ADP binding pocket dynamics; mobile WHD (Winged-Helix Domain).	ATPase activity; conformational switch regulated by nucleotide state; signal integration and amplification.
Linker (LRR-NBS)	Variable length, often α-helical.	Acts as a dynamic lever or flexible tether; critical for coupling LRR motions to NBS.	Transmits allosteric signals; modulates the energy landscape of domain-domain interactions.

The Allosteric Pathway: From Sensor to Switch

The transduction pathway involves a series of coupled motions.

Effector Perturbation of the LRR Dynamical Ensemble

Effector binding does not induce a single new conformation but selectively stabilizes a low-population sub-state within the LRR's intrinsic dynamical ensemble. This shifts the conformational equilibrium. Key effects include:

• Quenching of LRR Flexibility: Reduction in entropy at the binding interface.
• Alteration of Curvature/Twist: Mechanical strain is imposed on the solenoid structure.
• Propagation of Torsional Strain: Through the LRR backbone and side-chain networks to the linker region.

Signal Transmission Through the Inter-Domain Interface

The LRR-NBS interface in the OFF state is a hub of autoinhibitory contacts. Perturbations from the LRR alter the energy landscape of this interface.

• Displacement of the "Molecular Brake": In many NBS-LRRs, a conserved motif from the LRR (e.g., the "EDVID" motif in plant NLRs) interacts with the NBS P-loop, restraining ADP release. LRR motions weaken these interactions.
• Coupling via the Linker and ARC2: The linker and the ARC2 subdomain act as a dynamic relay, translating LRR movements into a rotation/translation of the ARC2 subdomain relative to the NB subdomain.

NBS Activation: Nucleotide Exchange and Hydrolysis Cycle

The allosteric signal culminates in the NBS. The weakened autoinhibition lowers the energy barrier for ADP dissociation. ATP (at mM cellular concentrations) binds, inducing a large-scale conformational change: closure of the NB-ARC nucleotide-binding pocket and a dramatic rotation of the WHD. This ON state conformation exposes oligomerization interfaces, primarily on the N-terminal domain, leading to the formation of active signaling complexes (resistosomes).

Table 2: Quantitative Parameters of NBS-LRR Dynamics & Activation

Parameter	Typical Range / Value (Experimental Method)	Significance
ADP Dissociation Rate (koff)	0.001 - 0.01 s-1 (OFF state); Increases 10-100x upon activation (Stopped-flow, FRET)	Rate-limiting step for activation; measures autoinhibition strength.
ATP Hydrolysis Rate (kcat)	0.1 - 5 min-1 (Enzyme kinetics)	Determines signaling duration; slow hydrolysis may stabilize the ON state.
Conformational Exchange (µs-ms)	Detected by NMR relaxation dispersion, μs-ALCHEMY	Reveals pre-existing motions between OFF and near-active states; allosteric communication pathways.
Activation Energy Barrier (ΔG‡)	~70-90 kJ/mol (from kinetics)	Energy required for the OFF→ON transition; lowered by effector binding.
Oligomerization Stoichiometry	4-10 subunits (Size-exclusion chromatography, MALS, Cryo-EM)	Functional signaling unit; influenced by NBS conformation.

Experimental Protocols for Probing Intrinsic Dynamics & Allostery

Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS)

Objective: To map protein flexibility and conformational changes upon effector/nucleotide binding by measuring the exchange rate of backbone amide hydrogens. Protocol:

• Sample Preparation: Purify NBS-LRR protein (full-length or domains) in appropriate buffer (e.g., 20 mM HEPES, pH 7.5, 150 mM NaCl).
• Deuterium Labeling: Dilute protein 1:10 into D₂O-based labeling buffer. Incubate for varying time points (10s, 1min, 10min, 1hr, 4hr) at 4°C.
• Quenching: Lower pH to 2.5 and temperature to 0°C to minimize back-exchange.
• Digestion & LC-MS/MS: Rapidly inject onto an immobilized pepsin column for online digestion. Separate peptides via reverse-phase UPLC (7 min gradient). Analyze by high-resolution mass spectrometer.
• Data Analysis: Use software (e.g., HDExaminer) to calculate deuterium uptake for each peptide. Differences >5% between conditions (e.g., +/- effector) identify regions of altered dynamics.

Double Electron-Electron Resonance (DEER) Spectroscopy

Objective: To measure distances (20-80 Å) between specific spin labels, reporting on domain orientations and conformational distributions. Protocol:

• Cysteine Mutagenesis & Spin Labeling: Introduce cysteine pairs at strategic positions (e.g., LRR distal end to NBS). Label with MTSSL spin label.
• Sample Preparation: Purify labeled protein in deuterated buffer with 20% glycerol-d₈ as cryoprotectant.
• Data Acquisition: Perform 4-pulse DEER measurements on a pulsed EPR spectrometer at 50 K.
• Data Processing: Analyze dipolar evolution curves using DeerAnalysis software. Obtain distance distributions. Compare distributions between ADP-bound and ATP-bound or effector-bound states.

Molecular Dynamics (MD) Simulations and Perturbation Response Scanning

Objective: To computationally visualize intrinsic motions and identify allosteric hotspots. Protocol:

• System Setup: Embed the atomic structure of an NBS-LRR protein in an explicit solvent/ion box. Energy minimize and equilibrate.
• Production Run: Perform µs-scale MD simulations (e.g., using GROMACS/AMBER) for apo, ADP-bound, and effector+ADP-bound states.
• Analysis: Calculate root-mean-square fluctuations (RMSF), cross-correlation matrices, and dynamic network analysis. Use Perturbation Response Scanning: apply in silico forces to specific residues and analyze the propagation of deformation through the protein graph to pinpoint key signal transduction nodes.

Visualization of Signaling Pathways and Workflows

Diagram Title: Allosteric Signal Transduction in NBS-LRR Activation

Diagram Title: Integrated Workflow for Studying NBS-LRR Dynamics

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Reagents for NBS-LRR Dynamics Research

Item	Function & Application	Key Considerations
Baculovirus Expression System	High-yield eukaryotic expression of full-length, post-translationally modified NBS-LRR proteins.	Essential for producing soluble, functional human NLRs or complex plant NLRs.
MTSL (S-(1-oxyl-2,2,5,5-tetramethyl-2,5-dihydro-1H-pyrrol-3-yl)methyl methanesulfonothioate)	Site-directed spin label for DEER spectroscopy. Covalently attaches to engineered cysteine residues.	Requires cysteine-less background. Control labeling efficiency via mass spec.
Deuterium Oxide (D2O), 99.9%	Labeling solvent for HDX-MS experiments.	Purity is critical to minimize back-exchange. Requires careful handling and storage.
Immobilized Pepsin Column	Rapid, low-pH online digestion of protein for HDX-MS. Minimizes back-exchange during processing.	Column efficiency and reproducibility are vital for peptide sequence coverage.
MANT-ADP/ATP (2'/3'-O-(N-Methylanthraniloyl))	Fluorescent nucleotide analogs for real-time kinetics of binding and hydrolysis (stopped-flow fluorimetry).	Emission shift upon protein binding allows monitoring of nucleotide exchange.
Size-Exclusion Chromatography with Multi-Angle Light Scattering (SEC-MALS)	Determines absolute molecular weight and oligomeric state in solution under native conditions.	Critical for assessing constitutive vs. activation-dependent oligomerization.
Cryo-EM Grids (e.g., Quantifoil R1.2/1.3)	Support film for vitrifying samples for single-particle cryo-electron microscopy of activated oligomers.	Grid quality and freezing conditions are paramount for high-resolution structure determination.

This whitepaper explores the intrinsic dynamics of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins, a central focus of our broader thesis on immune receptor mechanism research. NLRs are central to innate immunity in both plants and animals, acting as intracellular sentinels. While their domain architecture is well-characterized, the conserved dynamic motifs governing their transition from auto-inhibited to active states are less understood. This document synthesizes current research to detail these motifs, their quantitative biophysical parameters, and the experimental methodologies used to elucidate them, providing a technical guide for researchers and drug development professionals.

Conserved Dynamic Motifs: Structure and Function

Dynamic motifs are short, evolutionarily conserved sequences that facilitate conformational changes. Their conservation across kingdoms suggests a fundamental mechanistic principle in NLR activation.

The P-Loop/Walker A Motif

A core nucleotide-binding motif (GxxxxGK[T/S]) found in the NBS domain. Its flexibility is essential for ATP/dNTP binding and hydrolysis.

The MHD Motif

A signature motif (Met-His-Asp) in the NBS domain, often considered a "molecular switch." The His and Asp residues coordinate nucleotide state sensing and control the conformational equilibrium between inactive and active states.

The RNBS-A and RNBS-D Motifs

"Resistance Nucleotide-Binding Site" motifs. RNBS-A (also called Kinase 1a) and RNBS-D are critical for maintaining auto-inhibition. Mutations here often lead to constitutive activation.

The WHD (Winged-Helix Domain) and HD1 Motif

The WHD, along with the adjacent HD1 motif, forms a regulatory interface. Dynamics in this region transmit nucleotide-binding status to the LRR domain, triggering oligomerization.

Table 1: Quantitative Parameters of Conserved Dynamic Motifs in Model NLRs

Motif Name	Consensus Sequence	Key Dynamic Property	Measured ΔG (kCal/mol)*	Rate of Conformational Change (s⁻¹)*	Conservation Score (Plant/Animal)
P-Loop (Walker A)	GxxxxGK[T/S]	Nucleotide binding flexibility	-5.2 to -7.8	10³ - 10⁴	0.92 / 0.95
MHD	[M/L]HD	Switch helix stability	-3.5 to -5.1	10¹ - 10²	0.88 / 0.91
RNBS-A (Kinase 1a)	FxxDxW	Hydrophobic core packing	-4.8 to -6.3	10⁰ - 10¹	0.85 / 0.82
RNBS-D	CxFLxxC	Zinc-finger-like stability	-8.5 to -10.2	10⁻² - 10⁻¹	0.79 / 0.75
HD1	[G/S]xP	Loop flexibility for WHD coupling	-2.1 to -3.4	10⁴ - 10⁵	0.81 / 0.84

*Representative ranges from recent studies on Arabidopsis NLRs (e.g., ZAR1) and human NLRs (e.g., NLRP3, NOD2). Values are context-dependent.

Experimental Protocols for Probing NLR Dynamics

Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS)

Objective: To map solvent accessibility and dynamics of NLR motifs in different nucleotide states. Protocol:

• Sample Preparation: Purify recombinant NLR protein (e.g., full-length NOD2 or ZAR1 NBS-LRR fragment) in apo, ADP-, or ATPγS-bound states.
• Deuterium Labeling: Dilute protein 1:10 into D₂O-based labeling buffer (20 mM HEPES, 150 mM NaCl, pD 7.5) at 25°C.
• Quenching: At time points (10s, 1min, 10min, 1hr), add equal volume of pre-chilled quench buffer (400 mM KH₂PO₄/H₃PO₄, 2 M GuHCl, pH 2.2) to reduce pH to 2.5 and temperature to 0°C.
• Digestion & LC-MS/MS: Pass quenched sample through an immobilized pepsin column (2°C). Digest peptides are separated by ultra-performance LC (C18 column, 0°C). Mass analysis is performed via high-resolution MS.
• Data Analysis: Calculate deuterium uptake for each peptide. Peptides showing significant differential uptake (>5% change, p<0.01) between nucleotide states identify dynamic regions.

Double Electron-Electron Resonance (DEER) Spectroscopy

Objective: To measure distances and population distributions between spin-labeled motifs in NLR proteins. Protocol:

• Cysteine Mutagenesis & Spin Labeling: Introduce cysteines at specific positions in dynamic motifs (e.g., RNBS-A and WHD). Purify mutant protein and label with MTSSL spin probe.
• Sample Preparation: Prepare labeled protein (100-200 µM) in deuterated buffer with 20-30% glycerol-d₈ as cryoprotectant. Incubate with nucleotide (apo, ADP, ATP).
• DEER Measurement: Load sample into quartz capillary, flash-freeze in liquid nitrogen. Perform 4-pulse DEER experiment at Q-band (≈34 GHz) at 50 K.
• Data Processing: Analyze dipolar evolution data using DeerAnalysis software. Extract distance distributions. Shifts in mean distance and population peaks upon nucleotide binding indicate conformational changes.

Molecular Dynamics (MD) Simulations

Objective: To simulate atomic-level motions of dynamic motifs over time. Protocol:

• System Setup: Use a crystal structure (e.g., ZAR1 resistosome, PDB: 6J5T) or a homology model. Place protein in a solvated periodic box with ions for neutrality.
• Energy Minimization & Equilibration: Minimize energy via steepest descent. Equilibrate system in NVT and NPT ensembles for 100-500 ps each.
• Production Run: Perform unrestrained MD simulation for 500 ns to 2 µs using GPU-accelerated software (e.g., AMBER, GROMACS). Apply periodic boundary conditions and particle-mesh Ewald for electrostatics.
• Trajectory Analysis: Calculate root-mean-square fluctuation (RMSF) of residue positions, distances between motif centroids, and hydrogen bond lifetimes to quantify flexibility and interactions.

Visualization of NLR Activation Dynamics

Diagram 1: NLR Activation Pathway via Dynamic Motifs

Diagram 2: Integrative Workflow for Studying NLR Dynamics

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Reagents for NLR Dynamics Research

Item Name	Supplier Examples (Current)	Function in NLR Dynamics Research
NLR Baculoviral Expression Systems	Thermo Fisher Gibco, Oxford Expression Technologies	High-yield production of full-length, post-translationally modified animal NLRs for biophysical studies.
Wheat Germ Cell-Free Protein Expression Kits	CellFree Sciences, Bio-Synthesis	Rapid expression of plant NLR proteins, which are often cytotoxic in cellular systems.
Site-Directed Mutagenesis Kits	NEB Q5, Agilent QuikChange	Introduction of point mutations in conserved motifs (e.g., MHD→AAA) to probe function.
Non-hydrolyzable Nucleotide Analogs (ATPγS, AMP-PNP)	Jena Bioscience, Sigma-Aldrich	Trapping NLRs in specific nucleotide-bound states for structural and dynamic analysis.
Deuterium Oxide (D₂O) for HDX-MS	Cambridge Isotope Laboratories	Core reagent for hydrogen-deuterium exchange experiments to measure protein dynamics.
MTSSL Spin Label	Toronto Research Chemicals	Methanethiosulfonate spin label for site-specific cysteine labeling in DEER spectroscopy.
Cryo-EM Grids & Vitrification Robots	Quantifoil, Thermo Fisher Vitrobot	Preparing samples for high-resolution structural determination of NLR oligomers.
Specialized MD Simulation Software & Force Fields	Schrödinger Desmond, AMBER, CHARMM-GUI	Performing and analyzing molecular dynamics simulations of NLR conformational changes.

Tools of the Trade: Advanced Biophysical and Computational Techniques to Capture NBS-LRR Dynamics

This technical guide frames the application of molecular dynamics (MD) simulations within a broader thesis investigating the intrinsic dynamics mechanisms of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins. Understanding the conformational landscapes of these plant immune receptors is crucial for elucidating their activation pathways and informing novel strategies in agricultural biotechnology and drug development.

Theoretical Framework and Computational Approaches

MD simulations numerically solve Newton's equations of motion for atomic systems, generating trajectories that sample conformational space. For NBS-LRR proteins, this allows investigation of transitions between inactive (OFF) and active (ON) states, which are governed by nucleotide (ATP/ADP) binding and hydrolysis.

Key methodologies for mapping energy landscapes include:

• Conventional MD: Provides nanosecond-to-microsecond trajectories for observing local dynamics.
• Enhanced Sampling Methods:
  • Metadynamics: Adds a history-dependent bias potential to collective variables (CVs) to overcome energy barriers.
  • Umbrella Sampling: Restrains simulations at specific values along a reaction coordinate to compute free energy profiles (Potential of Mean Force, PMF).
  • Adaptive Sampling: Identifies and intensively samples under-sampled conformational regions.

Essential Collective Variables for NBS-LRR Dynamics

The selection of CVs is critical. For NBS-LRR proteins, relevant CVs often include:

• Distance between the NB-ARC and LRR domains.
• Solvent accessibility of the ADPLOOP motif.
• Twist angle of the helical domain HD1.
• Coordination number of the bound nucleotide (Mg²⁺).

Experimental Protocols from Cited Literature

Protocol 1: Umbrella Sampling for PMF Calculation on an NLR Protein

Objective: Calculate the free energy change associated with the rotation of the WHD (Winged Helix Domain) relative to the NB domain during nucleotide exchange.

• System Preparation: Build a simulation system from a crystal structure (e.g., PDB: 6V7Z) containing the NB-ARC and LRR domains. Solvate in a TIP3P water box, add 150mM NaCl.
• Reaction Coordinate Definition: Define the CV as the dihedral angle formed by the centers of mass of four key subdomains: NBD, HD1, WHD, and ARC2.
• Steering MD: Perform a short (2 ns) steered MD simulation to generate configurations along the entire CV range (0° to 120°).
• Umbrella Windows: Extract 50 equidistant configurations from the steered MD trajectory. Use each as the starting point for an independent simulation window.
• Biased Simulations: Run each window for 50-100 ns with a harmonic restraint (force constant ~200 kJ/mol/rad²) applied to the dihedral CV.
• Analysis: Use the Weighted Histogram Analysis Method (WHAM) to unbias and combine the data from all windows, producing the 1D PMF.

Protocol 2: Gaussian Accelerated MD (GaMD) to Sample Large-Scale Conformational Changes

Objective: Enhance sampling of global conformational transitions in a full-length NBS-LRR protein model.

• System Preparation: Construct a full-length homology model, integrate into a asymmetric lipid bilayer (POPE:POPG 7:3), solvate, and ionize.
• Conventional MD Equilibration: Run 500 ns of cMD to relax the system and collect potential statistics.
• GaMD Boost Potential Calculation: Calculate the system's maximum (Vmax), minimum (Vmin), average (Vavg), and standard deviation (σV) of the potential. Apply the GaMD acceleration parameters (dual boost on both dihedral and total potential).
• GaMD Production Run: Perform three independent 1 µs GaMD production runs with randomized initial velocities.
• Reweighting: Use the cumulant expansion to the second order to reweight the trajectory and recover canonical ensemble averages and free energy profiles.

Summarized Quantitative Data

Table 1: Key Simulation Parameters and Outcomes from Recent NBS-LRR MD Studies

Study System (PDB/Homology Model)	Simulation Method & Time	Key Collective Variable(s)	Computed Free Energy Barrier (kcal/mol)	Observed Transition Time (approx.)	Key Conformational Change
ZAR1 (PDB: 6J5T) - ADP-bound	aMD, 3 x 500 ns	NB-LRR distance, ADP-Mg²⁺ coordination	N/A	50-200 ns	LRR domain detachment from NB-ARC
APAF-1 (PDB: 3JBT) - ATP vs ADP	Umbrella Sampling, 50 windows x 50 ns	WHD rotation angle	4.2 ± 0.8 (ADP→ATP)	N/A	WHD rotation of ~110° upon ATP binding
MLA10 (Homology Model)	GaMD, 2 µs	HD1 helix twist, Solvent exposure of RNBS-D motif	~6.5	800 ns	HD1 unwinding, exposure of effector-binding surface
NOD2 (PDB: 5IRN)	Metadynamics, 300 ns	Distance between NBD and CARD domains	8.1 ± 1.2	N/A	CARD domains separate upon ATP hydrolysis

Table 2: Key Force Fields and Software for NBS-LRR Simulations

Tool Name	Type	Primary Use in NBS-LRR Research	Key Feature
CHARMM36m	Force Field	Protein, lipid, and carbohydrate dynamics	Optimized for IDPs and membrane proteins.
AMBER ff19SB	Force Field	Protein dynamics	Improved backbone and sidechain torsions.
DESRES Martini 3	Coarse-Grained FF	Large-scale assembly & membrane dynamics	Enables µs-ms scale simulations of full receptors.
GROMACS 2023	MD Engine	High-performance simulation	Extremely efficient on CPU/GPU clusters.
PLUMED 2.8	Plugin	Enhanced sampling & analysis	Library for CV definition and bias application.
NAMD 3.0	MD Engine	Scalable simulations on HPC	Excellent for very large (>10M atom) systems.

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Computational and Experimental Resources

Item	Function/Description	Relevance to NBS-LRR Dynamics
High-Performance Computing (HPC) Cluster	Provides the computational power (CPU/GPU cores) necessary for microsecond+ MD simulations.	Essential for all production MD runs.
Visualization Software (VMD, PyMOL)	Used to build systems, visualize trajectories, and analyze structural changes.	Critical for analyzing domain movements and interaction interfaces.
Homology Modeling Server (SWISS-MODEL, Phyre2)	Generates 3D structural models for NBS-LRR proteins with no crystal structure.	Required for studying most plant-specific NBS-LRRs lacking full-length structures.
Membrane Builder (CHARMM-GUI)	Prepares complex simulation systems with proteins embedded in lipid bilayers.	Necessary for studying membrane-associated NBS-LRRs or those with transmembrane regions.
Nucleotide Analogues (e.g., ATPγS, AMP-PNP)	Hydrolysis-resistant nucleotides used in experimental biochemistry (ITC, SPR) and crystallography.	Used to validate simulations by locking proteins in specific nucleotide states for comparison.
Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS)	Probes protein solvent accessibility and dynamics experimentally.	Provides experimental data to validate simulated conformational flexibility and folding.

Visualized Pathways and Workflows

MD Free Energy Workflow

NBS-LRR Activation Path & CVs

The functional mechanism of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) plant immune receptors is governed by their intrinsic dynamics, transitioning between inactive, intermediate, and active states upon pathogen perception. High-resolution cryo-electron microscopy (cryo-EM) has emerged as the pivotal tool for capturing these transient conformational ensembles, moving beyond static snapshots to elucidate the allosteric pathways underlying immune signaling. This whitepaper details the technical frameworks enabling these discoveries.

Core Technical Principles for Capturing Transient States

Time-Resolved Cryo-EM Methodologies

To trap short-lived states, rapid mixing and freezing techniques are employed.

Table 1: Time-Resolved Cryo-EM Techniques for NBS-LRR Studies

Technique	Temporal Resolution	Principle	Key Application in NBS-LRR Research
Spotiton-based Spraying	5-10 ms	Piezoelectric nozzle deposits sub-nanoliter sample onto grid just before plunging.	Capturing initial ADP/ATP exchange events in the NB domain.
Microfluidic Mixing	10-100 ms	Laminar flow mixing of ligand/protein in a chip followed by spraying.	Studying induced conformational changes upon effector protein binding.
Light-Triggered Cryo-EM	Variable (ms-s)	UV/blue light activation of caged compounds or photoreceptors on grid.	Controlled activation of engineered, photosensitive NBS-LRR constructs.
Cryo-EM Grid Pretreatment	Seconds-minutes	Pre-incubation of grids with substrates/effectors prior to vitrification.	Trapping intermediate states with longer lifetimes (e.g., pre-hydrolysis complexes).

Data Processing for Heterogeneous Populations

The resulting datasets contain multiple conformations. Advanced computational sorting is critical.

Detailed Protocol: Heterogeneous Refinement (Relion/CryoSPARC)

• Initial Processing: Perform standard motion correction, CTF estimation, and particle picking from micrographs.
• Ab-initio Reconstruction: Generate 3-5 initial models de novo in CryoSPARC to avoid reference bias.
• Heterogeneous Refinement: Classify the entire particle stack against the initial models. Discard classes representing junk or damaged particles.
• Multi-body Refinement (for flexible complexes): In Relion, define the NBS-LRR protein as two or more rigid bodies (e.g., NB domain vs. LRR domain). Refine their relative orientations and positions independently, revealing inter-domain motions.
• 3D Variability Analysis (CryoSPARC): Apply this tool to visualize continuous trajectories of motion along principal components of conformational change, such as the swinging motion of the LRR domain relative to the NB-ARC module.

Diagram Title: Workflow for Processing Heterogeneous NBS-LRR Conformations

Experimental Protocol: Trapping an ATP-Bound Intermediate of an NBS-LRR Protein

Objective: To resolve the structure of a nucleotide-exchange intermediate in the ZAR1 resistosome activation pathway.

Materials & Reagents:

• Purified, apo-state NBS-LRR protein (ZAR1-RKS1 complex): Stabilized in a low-salt buffer (e.g., 20 mM HEPES pH 7.5, 50 mM NaCl).
• Non-hydrolyzable ATP analog: AMP-PNP or ATPγS (10 mM stock in matching buffer).
• Quenching Solution: 2-3x molar excess of EDTA (pH 8.0) relative to Mg2+.
• UltraFoil R1.2/1.3 300-mesh grids: Treated with gentle glow discharge (15-30 seconds).
• Custom-built or commercial spray plunger (e.g., Spotiton, SPRAY-EM): With controlled humidity (>90%) and temperature (4°C).

Procedure:

• Setup: Load the apo-protein sample (3 mg/mL) into one syringe of the mixer. Load the AMP-PNP/MgCl2 solution into the second syringe.
• Mixing & Reaction: Set the mixer to achieve a 1:1 volumetric ratio, ensuring a final [AMP-PNP] > 5x Kd. The reaction proceeds through a 30 cm capillary, providing a reaction time of 50 ms.
• Quenching & Vitrification: At the capillary outlet, the reaction stream is mixed in-air with a stream of quenching solution (EDTA) to chelate Mg2+ and stop further nucleotide exchange. The resulting mixture is immediately sprayed onto the waiting, glow-discharged grid.
• Plunging: The grid is automatically plunged into liquid ethane within 5-10 ms of sample application.
• Data Collection: Acquire 5,000-8,000 micrographs on a 300 keV cryo-TEM with a K3 direct electron detector in super-resolution mode, at a defocus range of -0.8 to -2.5 μm.

The Scientist's Toolkit: Key Reagent Solutions for NBS-LRR Cryo-EM

Table 2: Essential Research Reagents & Materials

Item	Function & Rationale	Example/Detail
Nanodiscs (MSP or SAPORIN)	Provide a membrane-mimetic environment for studying full-length NBS-LRR proteins that require a lipid bilayer for proper function and autoinhibition.	MSP1E3D1 for ~11 nm discs.
Non-hydrolyzable Nucleotides (AMP-PNP, ATPγS, ADP•AlF3)	Trap specific nucleotide-bound states (ATP-bound pre-activation, ADP+Pi transition state) by preventing hydrolysis or release.	ADP•AlF3 mimics the pentavalent transition state during ATP hydrolysis.
Crosslinkers (GraFix, BS3)	Stabilize low-population conformational states or transient protein complexes via mild crosslinking prior to grid preparation.	GraFix uses a gradient of crosslinker and glycerol to stabilize complexes.
Fab/Nanobody Fragments	Conformational stabilizers and fiducial markers. Bind specific epitopes to lock a state and aid particle alignment for low-abundance conformers.	Anti-LRR or anti-NB domain Fabs.
Graphene Oxide or Graphene Support Films	Improve particle distribution and orientation for small (<150 kDa) protein complexes by providing a continuous, ultra-thin support layer.	Functionalized graphene oxide for specific adsorption.

Diagram Title: NBS-LRR Activation Pathway with Cryo-EM Trappable States

Quantitative Insights and Data Presentation

Table 3: Example Structural Statistics from a Hypothetical NBS-LRR Cryo-EM Study

Conformational State	Reported Resolution (Gold-Standard FSC=0.143)	Particle Count (Final)	Predominant Nucleotide State	Key Structural Feature Revealed
Autoinhibited (Ground)	2.8 Å	145,000	ADP	NB-ARC domain packed against LRR; ADPNHD motif engaged.
Nucleotide-Exchange Intermediate	3.3 Å	42,500	AMP-PNP (Trapped)	Partial rotation of NB subdomain; LRR displacement ~12 Å.
Activated Oligomer (Resistosome)	3.1 Å	87,200	ADP	Oligomeric ring (pentamer); N-terminal α1 helices form a funnel.
Effector-Bound Pre-activation	4.0 Å	18,100	ADP/ATP mixed	Effector bound to LRR surface; no large-scale conformational change.

High-resolution cryo-EM, coupled with time-resolved trapping techniques, has transitioned the study of NBS-LRR proteins from modeling to direct observation of their dynamic cycle. By providing atomic-level snapshots of transient intermediates—such as nucleotide-exchange states or early oligomerization seeds—this methodology directly tests hypotheses of allosteric communication intrinsic to immune receptor function. Future advances in beam-sensitive imaging, real-time fiducial-less tracking, and deep learning-based flexible fitting will further refine our ability to visualize these dynamic molecular machines in action.

Nucleotide-binding site leucine-rich repeat (NBS-LRR) proteins are central plant immune receptors. Their activation mechanism is intrinsically linked to conformational dynamics—a shift from a static, auto-inhibited state to an active, signaling-competent state upon pathogen perception. While AlphaFold2 (AF2) has revolutionized static protein structure prediction, its models of NBS-LRR proteins often represent a single, ground-state conformation. This technical guide outlines the integration of molecular dynamics (MD) simulations with AF2 predictions to extrapolate the functional dynamics and allosteric mechanisms of NBS-LRR proteins, moving beyond static snapshots to model the conformational landscape essential for their immune signaling function.

Core Methodological Integration

AlphaFold2 for Initial Structure Generation

AF2 provides high-confidence predicted structures for domains of NBS-LRR proteins, though full-length models can be challenging due to flexible linkers.

Protocol: Generating NBS-LRR Models with AF2

• Input Preparation: Isolate the protein sequence (e.g., Arabidopsis thaliana RPS5 or RPM1) from UniProt. Define distinct domains (NB-ARC, LRR, CC/TIR) for possible multi-chain prediction.
• ColabFold Execution: Use the ColabFold (v1.5.5) implementation with Amber relaxation enabled. Set max_template_date to a recent date and use --multimer mode for oligomeric considerations.
• Model Selection: Rank models by predicted local distance difference test (pLDDT) and predicted alignment error (PAE). High pLDDT (>80) indicates high confidence per-residue. A low PAE score between domains suggests a confident relative placement.

Table 1: Example AF2 Output Metrics for a Model NBS-LRR Protein

Model Rank	Overall pLDDT	pLDDT (NB-ARC domain)	pLDDT (LRR domain)	Interface PAE (NB-ARC-LRR)	Inference Time (GPU-hrs)
1	87.2	91.5	82.4	8.1 Å	4.2
2	85.6	90.8	79.1	12.5 Å	4.2
3	83.1	89.3	75.0	15.7 Å	4.2

From Static Model to Dynamic System Preparation

The AF2 output (PDB file) requires careful preprocessing to be a suitable starting point for MD.

Protocol: System Preparation for MD

• Model Completion: Add missing loops or side chains using Modeller or Rosetta. Protonate the structure at physiological pH (e.g., 7.4) using PDB2PQR or H++ server.
• Force Field Parameterization: Use CHARMM36m or Amber ff19SB force field. For non-standard residues (e.g., ADP bound in NB-ARC), generate parameters using antechamber or CGenFF.
• Solvation and Neutralization: Embed the protein in an explicit solvent box (TIP3P water) with a minimum 10 Å buffer. Add ions (e.g., 150 mM NaCl) to neutralize charge and mimic physiological conditions.
• Energy Minimization and Equilibration: Perform steepest descent minimization (5000 steps). Gradually heat the system from 0 K to 310 K over 100 ps in the NVT ensemble, followed by pressure equilibration (1 atm, 100 ps) in the NPT ensemble.

Enhanced Sampling MD to Probe Dynamics

Conventional MD (cMD) may be insufficient to capture large-scale conformational changes. Enhanced sampling is required.

Protocol: GaMD (Gaussian Accelerated MD) for NBS-LRR Activation

• Dual Boost GaMD Setup: Implement GaMD as described by Miao et al. (2015). Apply both a dihedral and a total potential energy boost to lower activation barriers.
• Simulation Parameters: After equilibration, run a short (20 ns) cMD to collect potential statistics. Calculate the acceleration parameters (σ, V) for a harmonic boost potential. Production GaMD simulation: 500 ns - 1 µs.
• Analysis of Dynamics: Use principal component analysis (PCA) on Cα atoms to identify collective motions. Construct free energy landscapes (FELs) by projecting trajectories onto the first two principal components (PC1, PC2). Identify metastable states corresponding to "off" and "on" conformations.

Table 2: Key Simulation Metrics from a Hypothetical NBS-LRR GaMD Study

Metric	Auto-inhibited State (S1)	Intermediate State (S2)	Activated State (S3)
Free Energy Relative to S1 (kcal/mol)	0.0	2.1 ± 0.3	4.8 ± 0.5
NB-ARC - LRR Domain Center-of-Mass Distance (Å)	28.5 ± 0.8	32.2 ± 1.1	40.7 ± 1.5
ADP Binding Pocket Solvent Accessible Surface Area (Ų)	150 ± 25	310 ± 45	580 ± 60
Residence Time in State (ns)	4500	150	50

Visualizing the Integrated Workflow & NBS-LRR Mechanism

Title: AF2-MD Integration Workflow

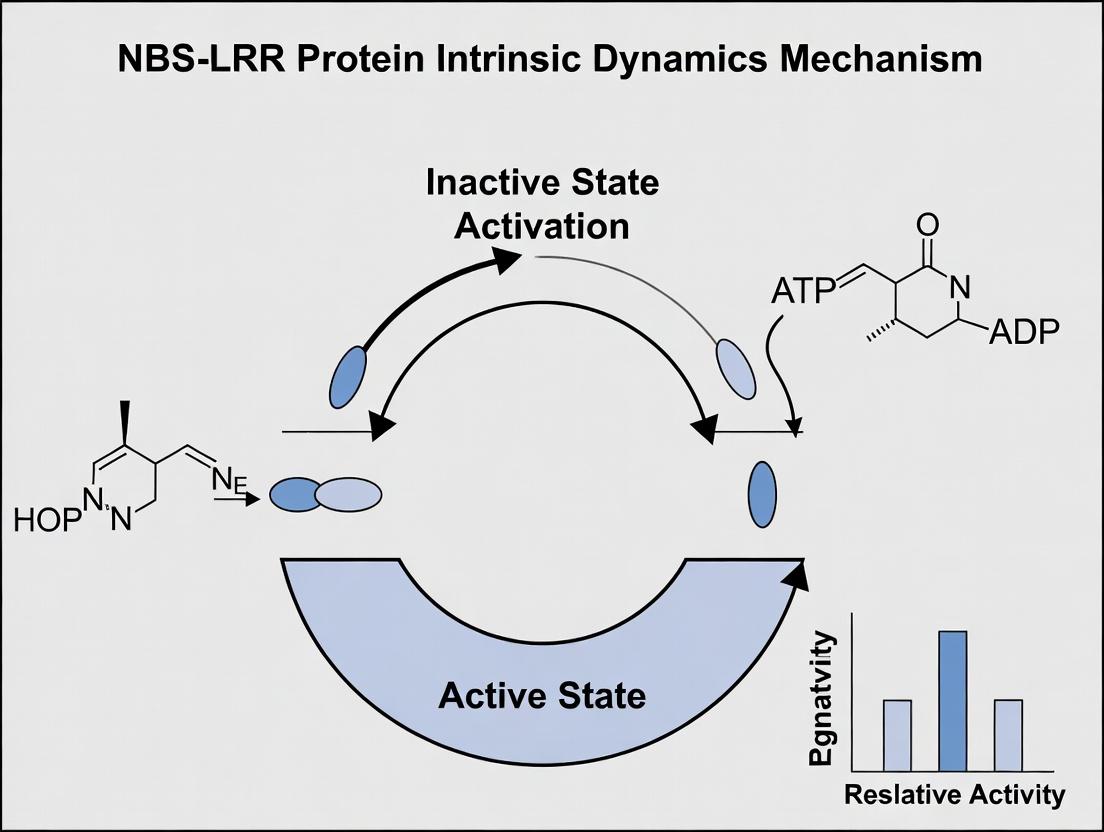

Title: NBS-LRR Activation Dynamics Model

The Scientist's Toolkit: Key Research Reagents & Materials

Table 3: Essential Computational Tools & Resources for AF2-MD Integration

Item	Category	Function & Relevance
ColabFold	Software Suite	Cloud-based, accessible pipeline running AlphaFold2 and AlphaFold Multimer with optimized hardware. Essential for rapid generation of initial NBS-LRR structural hypotheses.
GROMACS (2023+)	MD Engine	High-performance molecular dynamics package. Critical for running large-scale, enhanced sampling simulations of solvated NBS-LRR systems efficiently on HPC clusters.
CHARMM36m Force Field	Parameter Set	A rigorously tested biomolecular force field optimized for MD of proteins. Provides accurate parameters for protein, water, and ions in NBS-LRR simulations.
AMBER/ANTECHAMBER	Tool Suite	Used for parameterizing non-standard molecules (e.g., nucleotides like ATP/ADP, cofactors) present in the NB-ARC domain for simulation.
PyMOL/Molecular Dynamics Viewer (VMD)	Visualization & Analysis	Indispensable for visualizing AF2 models, preparing structures for MD, and analyzing simulation trajectories (e.g., measuring distances, domain movements).
BioPython	Programming Library	Facilitates automated parsing of sequence data, manipulation of PDB files from AF2, and integration of analysis steps in custom Python workflows.
High-Performance Computing (HPC) Cluster	Hardware	With multiple GPU nodes (for AF2) and high-CPU-core nodes (for MD). Necessary to perform the computationally intensive steps within a practical timeframe.
UniProt/Swiss-Prot Database	Data Resource	Source of canonical and reviewed protein sequences for NBS-LRR proteins, required as the primary input for AF2 structure prediction.

Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS) has emerged as a pivotal technique for studying protein dynamics, particularly in the context of understanding the intrinsic mechanisms of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins. These proteins, central to plant innate immunity, undergo significant conformational changes upon pathogen perception. HDX-MS provides a unique window into these dynamic processes by measuring the exchange rate of backbone amide hydrogens with deuterium from the solvent. This exchange rate is exquisitely sensitive to solvent accessibility and hydrogen bonding, thereby reporting on protein flexibility, folding, and interactions. For NBS-LRR proteins, which transition from auto-inhibited to active states, HDX-MS can map the regions of increased or decreased dynamics, identify allosteric networks, and characterize the structural consequences of mutations or effector binding, directly informing mechanistic models of immune receptor activation.

Core Principles and Quantitative Data

The fundamental principle of HDX-MS relies on the fact that amide hydrogens (¹H) in a protein's backbone can exchange with deuterium (²H) atoms when immersed in a deuterated buffer. The rate of this exchange is governed by two primary factors:

• Solvent Accessibility: Amides exposed to the solvent exchange rapidly.
• Hydrogen Bonding & Flexibility: Amides involved in stable hydrogen bonds (e.g., in α-helices or β-sheets) or buried in the protein core exchange slowly. Transient unfolding events increase exchange rates.

The exchange process is summarized by the following equation and rate constants:

HDX Reaction: Protein(¹H) + D₂O ⇌ Protein(²H) + HDO

Intrinsic Exchange Rate (k_ch) depends on pH and temperature (Table 1). Observed Exchange Rate (k_ex) is modulated by protein structure:

• k_ex = k_ch * (1 / (1 + 10^(pKa-pH))) * (protection factor)
• Protection Factor (PF) = k_ch / k_ex. A high PF indicates a protected, structured region.

Table 1: Representative Intrinsic Exchange Rate Constants (k_ch, min⁻¹) at 25°C

pH	6.0	7.0	8.0	Reference Conditions for NBS-LRR Studies
kch (approx.)	~0.1	~1.0	~10.0	Typical experiments are conducted at pH 7.0-7.5 and 4°C (kch ~0.1 min⁻¹) to obtain measurable time courses.

Table 2: HDX-MS Data Interpretation Guide for NBS-LRR Dynamics

HDX Observation (vs. Reference State)	Implied Structural/Dynamic Change in NBS-LRR Protein
Increased Deuterium Uptake	Increased solvent exposure/flexibility. e.g., Local unfolding upon activation, loop flexibility, allosteric destabilization.
Decreased Deuterium Uptake	Decreased solvent exposure/rigidification. e.g., Stabilization of a helix/strand, ligand-induced ordering, or occlusion of a surface.
No Change in Deuterium Uptake	Region is structurally unperturbed by the studied condition (mutation, ligand, etc.).
Bimodal Exchange Kinetics	Population of multiple conformational states (e.g., active vs. inactive equilibrium).

Detailed Experimental Protocol for NBS-LRR Proteins

Protocol: HDX-MS Workflow for Probing NBS-LRR Activation Dynamics

A. Sample Preparation

• Protein Purification: Purify recombinant NBS-LRR protein (e.g., full-length or specific domains like NB-ARC or LRR) to >95% homogeneity in non-deuterated buffer (e.g., 20 mM HEPES, 150 mM NaCl, pH 7.5).
• Ligand/Effector Complex Formation: Incubate the protein (e.g., 10 µM) with the nucleotide (ATPγS, ADP), an elicitor, or an auto-inhibitory partner protein for 30 min on ice. Maintain an identical apo/inactive sample as control.
• Deuterated Buffer Preparation: Prepare identical buffer composition using D₂O (99.9% D), adjusting pD (pH meter reading + 0.4).

B. Hydrogen-Deuterium Exchange

• Initiation: Dilute the protein/control sample 1:10 into deuterated buffer. For a time course, use exchange times (e.g., 10 s, 1 min, 10 min, 1 h, 4 h) at a constant temperature (typically 4°C to minimize back-exchange).
• Quenching: At each time point, withdraw aliquot and mix 1:1 with pre-chilled quench buffer (e.g., 3 M Urea, 1 M TCEP, 0.1% Formic Acid, pH ~2.3). This drops pH to ~2.5 and temperature to 0°C, reducing intrinsic exchange rate (k_ch) by ~10,000-fold.

C. Processing and Mass Spectrometry Analysis

• Digestion: Immediately pass the quenched sample through an immobilized pepsin column (online or offline) at 0°C for ~1 min. This generates a mixture of peptides.
• Liquid Chromatography: Desalt and separate peptides using a reverse-phase UHPLC column (C18) at 0°C with a fast gradient of water/acetonitrile (0.1% formic acid).
• Mass Spectrometry: Analyze eluting peptides using a high-resolution mass spectrometer (e.g., Q-TOF or Orbitrap). Measure the mass shift of each peptide centroid due to deuterium incorporation.

D. Data Processing

• Peptide Identification: Use tandem MS (MS/MS) on the non-deuterated control to identify peptide sequences.
• Deuterium Uptake Calculation: For each peptide at each time point, calculate the difference in mass between deuterated and non-deuterated states.
• Back-Exchange Correction: Apply a correction factor based on the maximum theoretical deuterium uptake and a fully deuterated control sample.
• Analysis & Mapping: Generate uptake curves for each peptide. Statistically compare uptake between experimental states (e.g., ATP-bound vs. ADP-bound). Map significant differences onto a protein structure model.

Diagram 1: HDX-MS Experimental Workflow

Diagram 2: HDX-MS Data Informs NBS-LRR Mechanism

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Materials for HDX-MS Studies of NBS-LRR Proteins

Item	Function in HDX-MS	Key Consideration for NBS-LRR Research
Ultra-Pure D₂O (99.9% D)	Source of deuterium for exchange reaction.	Minimal H₂O contamination is critical for accurate uptake calculation.
Quench Buffer (Low pH)	Stops HDX reaction by lowering pH and temperature.	Typically contains chaotropes (urea/guanidine) and reducing agents (TCEP) to denature and unfold protein for consistent digestion.
Immobilized Pepsin	Protease for rapid digestion under quenching conditions (pH 2.5, 0°C).	Efficiency and reproducibility are vital for high peptide sequence coverage of large, often complex, NBS-LRR proteins.
Vanquish or NanoAcquity UHPLC	Rapid, cold chromatographic separation of peptides prior to MS.	Maintains temperature at 0°C to minimize back-exchange (<30%).
High-Resolution Mass Spectrometer (e.g., Orbitrap Exploris)	Accurately measures mass increase of peptides due to deuterium incorporation.	High mass accuracy and resolution are needed to resolve isotopic distributions of overlapping peptides.
HDX Software (e.g., HDExaminer, DynamX)	Automates processing, peptide identification, uptake calculation, and statistical comparison.	Essential for handling large datasets from time-course studies of multiple NBS-LRR states.
Stable NBS-LRR Protein Variants	Well-behaved, monodisperse protein samples for reliable HDX.	May require mutagenesis (e.g., solubility tags, point mutants) or optimized buffers to study disease-associated variants.
Non-hydrolyzable Nucleotides (ATPγS, AMP-PNP)	Mimic active (ATP) or inactive (ADP) states to probe nucleotide-driven dynamics.	Crucial for defining the conformational changes in the NB-ARC domain during the activation cycle.

Thesis Context: This whitepaper details the application of single-molecule FRET (smFRET) to elucidate the intrinsic dynamics of NBS-LRR (Nucleotide-Binding Site Leucine-Rich Repeat) proteins. Understanding these conformational landscapes is central to a broader thesis on the mechanistic basis of plant innate immune receptor activation and regulation.

Förster Resonance Energy Transfer (FRET) is a distance-dependent radiationless energy transfer between two light-sensitive molecules (a donor and an acceptor). Single-molecule FRET (smFRET) allows the observation of conformational changes and interaction dynamics of individual biomolecules in real time, free from ensemble averaging. This is pivotal for studying NBS-LRR proteins, which sample multiple conformational states (e.g., inactive, intermediate, active) prior to ligand-induced activation. smFRET provides direct access to the kinetics, populations, and pathways of these domain rearrangements.

Key Experimental Methodologies

Protein Labeling for smFRET

• Objective: Site-specifically attach donor (Cy3, Alexa 555) and acceptor (Cy5, Alexa 647) fluorophores to defined positions on the NBS-LRR protein.
• Protocol:
  • Construct Design: Introduce unique cysteine residues at desired positions within the protein's domains (e.g., N-terminal domain, NBS domain, LRR domain) via site-directed mutagenesis. All native cysteines are mutated to serines.
  • Protein Expression & Purification: Express the mutant protein in E. coli or insect cells. Purify using affinity (e.g., His-tag, GST-tag) and size-exclusion chromatography.
  • Labeling Reaction: Incubate purified protein with a 3-5 fold molar excess of maleimide-functionalized donor and acceptor dyes. Perform reaction in a degassed, oxygen-scavenged buffer (e.g., Tris, pH 7.4, with 1mM TCEP) for 2-4 hours at 4°C in the dark.
  • Purification of Labeled Protein: Remove excess dye using a desalting column (e.g., PD-10) followed by HPLC or FPLC. Verify labeling efficiency and stoichiometry via absorbance spectroscopy.

smFRET Data Acquisition (TIRF Microscopy)

• Objective: Record fluorescence time trajectories from individual, surface-immobilized proteins.
• Protocol:
  • Surface Passivation & Immobilization: Use a PEGylated quartz microscope slide with a small percentage of biotin-PEG. Incubate with NeutrAvidin. Immobilize biotinylated, labeled NBS-LRR protein via a biotin tag (e.g., AviTag).
  • Imaging Buffer: Use an oxygen-scavenging system (1-2 mg/mL glucose oxidase, 0.04 mg/mL catalase, 0.8% D-glucose) and triplet-state quenchers (1-2 mM Trolox or cyclooctatetraene) to prolong fluorophore stability.
  • Microscopy: Use a objective-type Total Internal Reflection Fluorescence (TIRF) microscope. Excite donor with a 532 nm laser. Collect donor and acceptor emission simultaneously on an EMCCD or sCMOS camera via a dichroic beam splitter.
  • Data Collection: Record movies at 10-100 ms time resolution. Track single molecules using software (e.g., SMACK, SpotOn). Extract donor (ID) and acceptor (IA) intensity trajectories over time.

Data Analysis & State Identification

• Objective: Calculate FRET efficiency (E) and identify discrete conformational states.
• Protocol:
  • FRET Efficiency Calculation: Compute E for each time point: E = IA / (ID + I_A). Correct for background, donor leakage into acceptor channel, and direct acceptor excitation.
  • Histogram Construction: Generate a combined FRET efficiency histogram from all molecules.
  • Hidden Markov Modeling (HMM): Apply HMM (e.g., using vbFRET, HaMMy, or custom scripts) to idealized FRET trajectories to identify the number of states, their mean FRET values, and transition rates.
  • Dwell Time Analysis: Extract dwell times in each state from HMM fits. Plot survival probability distributions and fit with exponential decays to obtain rate constants for transitions.

Table 1: Typical smFRET Parameters for NBS-LRR Protein Dynamics

Parameter	Typical Value / Range	Description
FRET Efficiency (E)	0.1 - 0.9	Distance-dependent, reports on inter-domain proximity.
Time Resolution	1 - 100 ms	Determines detectable kinetic events.
State Dwell Times	10 ms - 100 s	Lifetimes of specific conformational states.
Transition Rates (k)	0.01 - 100 s⁻¹	Rates of conversion between conformational states.
Labeling Distance (R)	~4 - 8 nm	Effective distance range for Cy3/Cy5 pair (R0 ~5.4 nm).

Table 2: Hypothetical NBS-LRR Conformational States Identified via smFRET

State	Mean FRET	Proposed Conformation	Population (%) (Apo)	Population (%) (+ATP)
State 1 (S1)	0.15	Closed, Inactive	75	10
State 2 (S2)	0.45	Intermediate, ADP-bound	20	25
State 3 (S3)	0.80	Open, Active (ATP-bound)	5	65

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials for smFRET Studies of NBS-LRR Proteins

Item	Function	Example Product/Catalog
Maleimide Dyes	Site-specific cysteine labeling for FRET pair.	Cy3/Cy5-maleimide (Lumiprobe); Alexa Fluor 555/647 C2 Maleimide (Thermo Fisher)
Oxygen Scavenger	Reduces photobleaching by removing dissolved O₂.	Glucose Oxidase from Aspergillus niger (Sigma G2133); Catalase from bovine liver (Sigma C9322)
Triplet State Quencher	Suppresses fluorophore blinking.	Trolox (Sigma 238813)
PEG Passivation Mix	Creates inert, non-sticking surface for immobilization.	Biotin-PEG-SVA & mPEG-SVA (Laysan Bio)
NeutrAvidin	High-affinity link between biotinylated surface and protein.	NeutrAvidin Protein (Thermo Fisher 31000)
TIRF Microscope Slides	High-quality imaging chambers.	Quartz slides with drilled wells (e.g., Hellma Analytics)
EMCCD/sCMOS Camera	High-sensitivity, low-noise single-photon detection.	iXon Ultra 888 (Andor); Prime BSI (Teledyne Photometrics)

Visualizations

Diagram 1: smFRET Workflow for NBS-LRR Studies

Diagram 2: NBS-LRR Conformational Landscape from smFRET

Diagram 3: Key Signaling Pathway for NBS-LRR Activation

Navigating Complexity: Solutions for Challenges in Modeling and Characterizing NBS-LRR Dynamics

Molecular dynamics (MD) simulation is a cornerstone technique for studying the atomistic dynamics of biological systems, such as NBS-LRR (Nucleotide-Binding Site Leucine-Rich Repeat) proteins. These proteins are crucial plant immune receptors, and understanding their intrinsic dynamics—specifically the transition between inactive, intermediate, and active states—is central to elucidating disease resistance mechanisms. However, conventional MD is severely limited by its timescale, often failing to capture rare but critical conformational transitions that occur on microsecond to millisecond timescales or beyond. This whitepaper details two powerful enhanced sampling methods—Metadynamics and accelerated Molecular Dynamics (aMD)—that overcome these limitations, providing a technical guide for their application within NBS-LRR research.

Theoretical Foundations and Application to NBS-LRR Dynamics

The intrinsic dynamics of NBS-LRR proteins involve large-scale conformational changes in the NB-ARC and LRR domains, governed by complex energy landscapes with high free energy barriers. Enhanced sampling techniques bias simulations to cross these barriers efficiently.

Metadynamics operates by adding a history-dependent bias potential, typically as a sum of Gaussian functions, along pre-defined Collective Variables (CVs). For NBS-LRR proteins, crucial CVs include:

• Distance between the NB-ARC domain and the LRR domain.
• Solvent accessibility of the ADP/ATP binding pocket.
• Radius of gyration of the entire protein.

The bias discourages the system from revisiting sampled configurations, forcing exploration of new states. The free energy surface (FES) is reconstructed from the negative of the deposited bias.

Accelerated MD (aMD) applies a non-negative, continuous bias potential to the entire system when the system's potential energy falls below a reference energy. This "boost" reduces the depth of energy wells, smoothing the landscape and accelerating transitions without requiring pre-defined CVs. This is particularly advantageous for NBS-LRR systems where relevant CVs are not always obvious a priori.

Quantitative Comparison of Techniques

The table below summarizes the core characteristics, advantages, and challenges of Metadynamics and aMD in the context of NBS-LRR research.

Table 1: Comparison of Enhanced Sampling Techniques for NBS-LRR Studies

Feature	Metadynamics	Accelerated MD (aMD)
Core Principle	Adds repulsive Gaussian bias along predefined Collective Variables (CVs).	Applies a continuous boost potential when system energy is below a threshold.
Requires CVs?	Yes, critical for success.	No, acts on the total potential/dihedral energy.
Primary Output	Free Energy Surface (FES) as a function of CVs.	Accelerated trajectory; FES requires reweighting.
Key Strength	Direct, intuitive reconstruction of FES; excellent for mapping specific transitions.	Broad, unbiased exploration of conformational space; no CV definition needed.
Key Challenge	Choice of optimal CVs is non-trivial; risk of over-filling.	Requires careful tuning of boost parameters; statistical reweighting can be difficult.
Best for NBS-LRR	Quantifying free energy differences between known states (e.g., ADP-bound vs. ATP-bound).	Discovering unknown intermediate states or large-scale conformational changes.

Detailed Experimental Protocols

Protocol 1: Well-Tempered Metadynamics for NBS-LRR State Transition Analysis

This protocol aims to calculate the free energy difference between the inactive (ADP-bound) and active (ATP-bound) states of an NBS-LRR protein.

• System Preparation: Obtain an atomic model of the target NBS-LRR protein. Solvate it in a cubic water box (e.g., TIP3P), add ions to neutralize charge and achieve 0.15 M NaCl. Use AMBER ff19SB or CHARMM36m force fields.
• Equilibration: Perform energy minimization, followed by NVT and NPT equilibration at 300 K and 1 bar for 2 ns each, using restraints on protein heavy atoms that are gradually released.
• Collective Variable (CV) Definition: Identify CVs using preliminary unbiased MD and structural analysis. Essential CVs include:
  • CV1: Distance between the center of mass of the P-loop (NB domain) and a key residue in the LRR domain.
  • CV2: Dihedral involving the gamma-phosphate of the nucleotide and surrounding binding pocket residues.
• Metadynamics Simulation: Using PLUMED interfaced with GROMACS/NAMD:
  • Set Gaussian height to 1.0 kJ/mol, width adapted to CV fluctuations, and deposition stride of 500 steps.
  • Use a bias factor (γ) of 15-30 for well-tempered metadynamics to ensure asymptotic convergence.
  • Run simulation until the system transitions between states multiple times (typically 200-500 ns).
• Analysis: Use plumed sum_hills to reconstruct the 2D FES. Identify minima (stable states) and saddle points (transition states).

Protocol 2: aMD for Enhanced Conformational Sampling of NBS-LRR Proteins

This protocol is designed for broad exploration of the NBS-LRR conformational landscape without defining reaction coordinates.

• System Preparation & Equilibration: Follow Steps 1-2 from Protocol 1.
• aMD Parameter Calculation: Run a short (5-10 ns) conventional MD simulation. Analyze the average total (V_avg) and dihedral (D_avg) potential energies.
  • Dual Boost aMD: Apply boost to both total and dihedral potential energies.
  • Total Boost Parameters: E_t = V_avg + α * N_atoms; α = 0.16 kcal/(mol·atom).
  • Dihedral Boost Parameters: E_d = D_avg + α * N_dihedrals; α = 0.20 kcal/(mol·dihedral).
• aMD Production Run: Implement the calculated boost parameters in AMBER, NAMD, or GROMACS-aMD modules. Run an extended simulation (e.g., 500 ns - 1 µs). The boost potential will lower energy barriers, increasing the rate of conformational transitions.
• Reweighting & Analysis: Use the Maclaurin series expansion (MSE) or Weighted Histogram Analysis Method (WHAM) to reweight the aMD trajectory for canonical ensemble averages. Perform clustering analysis on reweighted trajectories to identify metastable states.

Visualizing Workflows and Signaling Context

Diagram 1: Metadynamics Workflow for NBS-LRR

Diagram 2: NBS-LRR Activation Pathway

Diagram 3: aMD Simulation & Analysis Workflow

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Computational Tools for Enhanced Sampling of NBS-LRR Proteins

Item / Software	Function in Research	Key Application for NBS-LRR
GROMACS	High-performance MD engine.	Core simulation software for running cMD, metadynamics (via PLUMED), and aMD.
AMBER	Suite of MD simulation programs.	Particularly strong for aMD simulations and force field parameterization for nucleotides.
PLUMED	Plugin for free-energy calculations.	Essential for defining CVs and performing Metadynamics, Umbrella Sampling, etc.
CHARMM36m / AMBER ff19SB	All-atom force fields.	Provide accurate parameters for protein, nucleic acid (ATP/ADP), and solvent interactions.
VMD / PyMOL	Molecular visualization and analysis.	Visualization of trajectories, measuring distances/angles for CV definition, and figure generation.
MDTraj / MDAnalysis	Python libraries for trajectory analysis.	Scriptable analysis of large datasets (e.g., RMSD, clustering, dihedral analysis).
Bio3D (R)	R package for comparative analysis.	Analysis of essential dynamics and conformational ensembles from MD trajectories.

Nucleotide-binding site leucine-rich repeat (NBS-LRR) proteins constitute a primary class of intracellular immune receptors in plants, responsible for detecting pathogen effectors and initiating robust defense signaling. The intrinsic dynamics of these large, multi-domain proteins—encompassing N-terminal signaling domains, a central NB-ARC (Nucleotide-Binding adaptor shared by APAF-1, R proteins, and CED-4) module, and a C-terminal LRR domain—are fundamental to their mechanism of action. Understanding the transition from an auto-inhibited "off" state to an activated "on" state requires computational approaches that can handle systems of this scale (200-1500 kDa) and flexibility over biologically relevant timescales. This whitepaper details coarse-grained (CG) and hybrid modeling methodologies critical for elucidating these dynamics, framing them within the broader thesis of decoding NBS-LRR allosteric regulation and conformational switching.

Coarse-Grained Modeling: Principles and Applications

Coarse-grained modeling reduces system complexity by grouping multiple atoms into single "beads," enabling the simulation of larger systems and longer timescales. For NBS-LRR proteins, this is indispensable.

Popular CG Force Fields for Biomolecules

Force Field	Resolution (Atoms/Bead)	Typical Timescale	Key Application in NBS-LRR Research
MARTINI	~4 heavy atoms	µs-ms	Studying domain-level interactions, membrane association of TIR/CC domains, and oligomerization.
AWSEM	1 bead per amino acid	µs	Probing folding and large-scale conformational changes in the NB-ARC domain.
OPEP	1-6 beads per amino acid	µs	High-resolution study of peptide binding to LRR domains and its allosteric effects.
Cα-based Gō-like	1 bead per Cα atom	µs-ms	Mapping the energy landscape of the ADP-to-ATP exchange and subsequent conformational changes.

Experimental Protocol: Setting up a MARTINI CG Simulation for an NBS-LRR Protein

• Atomistic Starting Structure: Obtain a PDB file (experimental or homology model) of the target NBS-LRR protein or relevant domain (e.g., NB-ARC-LRR).
• CG Topology Generation: Use the martinize.py script (or CHARMM-GUI Martini Maker) to convert the atomistic structure into a CG representation. Assign bead types based on amino acid identity and secondary structure.
• System Solvation & Ionization: Place the CG protein in a CG water box (e.g., Martini water beads). Add ions to neutralize the system and achieve a physiological salt concentration (~150 mM NaCl).
• Energy Minimization: Run steepest descent minimization to remove steric clashes.
• Equilibration: Perform short MD runs (e.g., 100-500 ns CG time) with position restraints on protein backbone beads, gradually releasing them. Use a thermostat (e.g., v-rescale) and barostat (e.g., Berendsen).
• Production Simulation: Run unrestrained MD for µs-ms of CG time. Use GPUs for accelerated computation.
• Analysis: Analyze trajectories for domain motions, contact maps, solvent accessibility, and interaction energies between functional domains.

Title: MARTINI Coarse-Grained Simulation Workflow

Hybrid (Multiscale) Modeling Approaches

Hybrid approaches combine different resolution models within a single simulation to focus computational resources on regions of interest.

QM/MM (Quantum Mechanics/Molecular Mechanics)

Used to study chemical reactions, such as ATP hydrolysis in the NB-ARC nucleotide-binding pocket.

• Protocol: The ATP molecule and key coordinating residues (e.g., Walker A lysine, Sensor II arginine) are treated with QM (e.g., DFT). The rest of the protein and solvent are treated with a classical MM force field.

Adaptive Resolution Schemes (AdResS)

Allows molecules to change resolution on-the-fly between CG and atomistic based on their location in a defined "high-resolution" region.

• Application: Simulating an NBS-LRR protein with atomistic detail at the nucleotide-binding site while the solvent and distal domains are coarse-grained.

Equivariant Neural Networks for Protein Dynamics

A recent machine-learning advancement that learns coarse-grained potential functions from atomistic data, capable of predicting realistic dynamics.

• Application: Training on simulations of NBS-LRR domains to predict the conformational ensemble accessible upon effector binding.

Title: Hybrid Modeling Resolution Allocation for NBS-LRR

Integrating Modeling with Experimental Data

Computational models must be validated and informed by experimental data.

Data-Guided Modeling Table

Experimental Technique	Data Type	How it Informs CG/Hybrid Models
Small-Angle X-ray Scattering (SAXS)	Low-resolution shape envelope	Used to filter and weight CG simulation ensembles; validates overall conformation.
Hydrogen-Deuterium Exchange MS (HDX-MS)	Solvent accessibility & dynamics	Informs on regions of flexibility/rigidity; used to refine CG force field restraints.
Double Electron-Electron Resonance (DEER)	Distance distributions (20-80 Å)	Provides key restraints for refining CG models of domain arrangements.
Cryo-Electron Microscopy (cryo-EM)	3-5 Å density maps (flexible regions)	Directly used for flexible fitting of CG or hybrid models into density.

Protocol: Integrating SAXS Data with CG Ensemble Simulations

• Generate Conformational Ensemble: Run multiple independent CG simulations or use enhanced sampling (e.g., replica exchange) to sample diverse states.
• Calculate Theoretical SAXS: For each snapshot in the ensemble, compute the theoretical scattering profile using tools like CRYSOL or FOXS.
• Compute χ² Score: Compare theoretical (Icalc(s)) and experimental (Iexp(s)) scattering curves: χ² = (1/(N-1)) * Σ[(Iexp(s) - Icalc(s))/σ(s)]².
• Re-weighting: Use Bayesian/Maximum Entropy methods (e.g., BME) to re-weight the simulation ensemble to best match the experimental SAXS data.
• Analysis: Analyze the dominant, re-weighted conformations to propose a mechanistic model.

The Scientist's Toolkit: Research Reagent Solutions

Item Name & Supplier	Function in NBS-LRR Dynamics Research
GROMACS 2024+ (Open Source)	Primary MD simulation software with extensive support for MARTINI, force field mixing, and enhanced sampling.
CHARMM-GUI (Web Server)	Streamlines setup of complex CG and hybrid simulation systems, including membrane environments.
MDAnalysis (Python Library)	Essential for analyzing simulation trajectories, calculating distances, RMSD, and interfacing with experimental data.
BioCAT Beamline 18-ID (APS)	Provides high-throughput SAXS data collection for validating solution-state conformations of NBS-LRR constructs.
DEER Spectroscopy Kit (Bruker)	Enables site-directed spin labeling and distance measurement for long-range domain positioning.
Alphafold2/3 (Google DeepMind)	Generates high-confidence structural predictions for missing domains or full-length proteins to serve as modeling templates.
OpenMM (Python/C++ Library)	GPU-accelerated toolkit enabling custom implementation of hybrid force fields and neural network potentials.

Title: NBS-LRR Activation Pathway from Recognition to Signaling

Within the framework of a thesis on NBS-LRR (Nucleotide-Binding Site Leucine-Rich Repeat) protein intrinsic dynamics mechanism research, a central challenge is the structural characterization of low-population conformational states. These transient, often functionally critical states evade canonical structural methods like X-ray crystallography and cryo-EM single-particle analysis. This guide details the core experimental pitfalls and advanced methodologies for stabilizing and capturing these elusive states for structural elucidation.

The Thermodynamic and Kinetic Challenge

NBS-LRR proteins exist in a dynamic equilibrium between auto-inhibited (OFF) and active (ON) states. The signaling-competent or intermediate states often constitute <5% of the population under physiological conditions, presenting a fundamental sampling problem. Stabilizing these states requires shifting the equilibrium through strategic perturbations.

Key Quantitative Parameters for State Stabilization

Table 1: Common Biophysical Parameters of NBS-LRR Low-Population States

State	Estimated Population (%)	Typical Lifespan	Primary Stabilization Method	Key Structural Feature Targeted
ATP-bound Pre-activation	1-5	µs-ms	Hydrolytic Trapping (e.g., AMP-PNP, ADP-AlFx)	P-loop & RNBS-A motif tightening
Activated NLRP1	<0.1	ms	Protease-cleavage Mimetics (FIIND auto-processing)	C-terminal domain release
NLRP3 Inflammasome Primed	2-8	seconds	Point Mutation (R258W), Pharmacologic Inhibitor (MCC950)	NACHT domain hydrophobic pocket
Disease-associated Mutant (e.g., NLRP3)	10-30*	minutes-hours	Pathogenic Gain-of-Function Mutation (A350V)	Hydrophobic core destabilization

*Artificially elevated population for study.

Detailed Experimental Protocols

Protocol 1: Trapping the ATP-Bound State for Crystallography

Objective: Stabilize the nucleotide-bound, pre-hydrolysis state of an NLR NACHT domain. Method:

• Protein Engineering: Express and purify a construct containing the NACHT domain (e.g., NLRC4, amino acids 100-800) with a C-terminal His-tag using baculovirus/insect cell system.
• Nucleotide Analog Incorporation: Incubate purified protein at 2 mg/mL with 5 mM AMP-PNP (a non-hydrolyzable ATP analog) and 10 mM MgCl₂ on ice for 1 hour.
• Cross-linking: Add 1 mM disuccinimidyl suberate (DSS), a homo-bifunctional amine-reactive crosslinker, and incubate for 30 minutes at 4°C to "freeze" transient domain movements.
• Quenching & Purification: Quench reaction with 50 mM Tris-HCl (pH 7.5). Purify complex via size-exclusion chromatography (SEC) in buffer containing 20 mM HEPES pH 7.5, 150 mM NaCl, 5 mM MgCl₂, and 1 mM AMP-PNP.
• Crystallization: Use sitting-drop vapor diffusion. Mix 0.1 µL protein complex (8 mg/mL) with 0.1 µL reservoir solution (0.1 M MES pH 6.5, 25% PEG 3350). Flash-cool crystals in liquid N₂ with 20% glycerol as cryoprotectant.

Protocol 2: Cryo-EM Analysis of a Primed Inflammasome

Objective: Capture the single-ring, seed oligomer of NLRP3 stabilized by a pharmacologic inhibitor. Method:

• Sample Preparation: Incubate recombinant full-length human NLRP3 (2 µM) with 10 µM of the inhibitor MCC950 for 30 minutes at 25°C in buffer (20 mM Tris pH 7.4, 150 mM NaCl, 1 mM TCEP).
• Vitrification: Apply 3 µL of sample to a glow-discharged Quantifoil R1.2/1.3 300-mesh Au grid. Blot for 3.5 seconds at 100% humidity, 4°C, and plunge-freeze in liquid ethane using a Vitrobot.
• Data Collection: Acquire 5,000 movies on a 300 keV Krios G4 with a Gatan K3 detector at a nominal magnification of 105,000x (0.832 Å/pixel). Use a dose of 50 e⁻/Ų fractionated over 40 frames.
• Processing for Heterogeneity: Perform 3D classification in RELION or cryoSPARC without symmetry (C1) to isolate low-population (<10%) particles representing the single-ring, inhibitor-bound "primed" state from disordered monomers and larger oligomers.

Mandatory Visualizations

Title: NBS-LRR State Transition Pathway and Stabilization Points

Title: Workflow for Stabilizing and Analyzing Low-Population States

The Scientist's Toolkit: Research Reagent Solutions

Table 2: Essential Reagents for Low-Population State Analysis

Reagent Category	Specific Example(s)	Function in Stabilization
Non-hydrolyzable Nucleotide Analogs	AMP-PNP, ADP-BeFₓ, ADP-AlFₓ	Mimics ATP transition state; traps NACHT domain in active, nucleotide-bound conformation.
Covalent Cross-linkers	Disuccinimidyl suberate (DSS), GraFix (gradient fixation)	Chemically "freezes" transient inter- or intra-domain interactions for structural analysis.
Pharmacologic Stabilizers	MCC950 (CP-456,773), CY-09, Oridonin	Binds specific pockets in NLRP3/NLRP1, stabilizing a primed, pre-oligomerization state.
Site-Directed Mutagenesis Kits	Q5 Site-Directed Mutagenesis Kit (NEB)	Introduces gain-of-function (e.g., NLRP3 R258W) or loss-of-function mutations to shift equilibrium.
Cryo-EM Grids & Supports	UltrAuFoil R1.2/1.3, Graphene Oxide-coated grids	Provides low-noise, optimal support for small, heterogeneous protein complexes.
Hydrogen-Deuterium Exchange (HDX) Reagents	D₂O buffer, Quench solution (low pH, low T)	Probes solvent accessibility dynamics to identify regions involved in transient state formation.

Validating Computational Models with Mutagenesis and Functional Assays

1. Introduction: A Core Pillar in NBS-LRR Intrinsic Dynamics Research

Understanding the intrinsic dynamics of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) immune receptors is paramount for elucidating plant immunity mechanisms and engineering durable disease resistance. Computational models, particularly those derived from molecular dynamics (MD) simulations and machine learning, have become indispensable for predicting protein conformational states, allosteric networks, and energetic landscapes at atomic resolution. However, these models generate hypotheses that require rigorous empirical validation. This guide details the integrative experimental pipeline of mutagenesis and functional assays, positioned as the critical feedback loop for validating and refining computational predictions within NBS-LRR research.

2. Foundational Computational Predictions for NBS-LRR Proteins

Computational studies on NBS-LRR proteins (e.g., Arabidopsis ZAR1, MLA, Rx) typically predict key dynamic features, which become targets for experimental validation.

Table 1: Common Computational Predictions for NBS-LRR Intrinsic Dynamics

Prediction Category	Specific Hypothesis	Relevant NBS-LRR Region
Allosteric Hotspots	Residues R345, F450, and D520 form a coupled network regulating ADP/ATP exchange.	NB-ARC domain (P-loop, RNBS-A, MHD)
Conformational Switch	Rotation of the winged-helix domain (WHD) by ~15° is required for activation.	Linker between NB-ARC and LRR
LRR Solvent Exposure	LRR β-sheets 12-15 form a "sensor surface" with solvation energy changes > -50 kcal/mol.	C-terminal LRR repeats
Autoinhibitory Interface	Salt bridge R250-E450 stabilizes the autoinhibited state; breaking it reduces stability by ΔG ≥ 3.0 kcal/mol.	Interface between NB-ARC subdomains

3. Experimental Validation Pipeline

3.1. Mutagenesis Strategy Based on Computational Outputs

• Site-Directed Mutagenesis (SDM): The primary method for testing predicted residues.

  • Protocol: Use high-fidelity PCR with primers containing the desired nucleotide substitution. For a point mutation (e.g., R345A), design overlapping primers with the mutated codon (GCC for Ala). Perform PCR using a plasmid template containing the NBS-LRR gene, followed by DpnI digestion to remove methylated template DNA. Transform into competent E. coli, sequence-verify colonies, and purify plasmid DNA for subsequent assays.

• Saturation Mutagenesis: For exploring all possible substitutions at a predicted hotspot.

  • Protocol: Use primers containing NNK degenerate codons (N = A/T/G/C, K = G/T) at the target codon position. Clone the resulting library into a yeast or bacterial expression vector for functional screening.

3.2. Key Functional Assays for Validation

• In Vitro ATPase/GTPase Activity Assay: Validates predictions about nucleotide binding and hydrolysis kinetics.

  • Protocol: Purify recombinant wild-type (WT) and mutant NBS-LRR proteins (e.g., via GST-tag). Incubate 1 µM protein in reaction buffer (25 mM Tris-HCl pH 7.5, 10 mM MgCl₂, 1 mM DTT) with 1 mM ATP/γ-³²P-ATP. Stop reactions at time points (0-60 min) with 5% formic acid. Separate products via thin-layer chromatography (Polygram CEL 300 PEI/UV₂₅₄ plates) in 0.5 M LiCl/1 M formic acid. Quantify using a phosphorimager.
  • Table 2: Example Validation Data from ATPase Assay (Hypothetical ZAR1 Mutants)

    Protein Variant	Predicted Role	Kcat (min⁻¹)	Km (µM ATP)	Interpretation
    WT	Baseline	0.15 ± 0.02	120 ± 15	--
    R345A	Allosteric hotspot	0.04 ± 0.01	350 ± 40	Disrupted catalysis & binding
    F450E	Switch destabilizer	0.45 ± 0.05	90 ± 10	Hyperactive, reduced autoinhibition
    D520N	Coordinating residue	0.02 ± 0.005	>500	Severely impaired function

• In Planta Cell Death Assay (Autoactivity): Tests if mutations disrupt autoinhibition or constitutively activate signaling.

  • Protocol: Clone WT and mutant NBS-LRR genes into a binary vector (e.g., pBIN19-35S:GFP) for Agrobacterium tumefaciens-mediated transient expression in Nicotiana benthamiana. Infiltrate leaves with Agrobacterium suspensions (OD₆₀₀ = 0.4). Monitor cell death (collapsed tissue, ion leakage) over 2-7 days using trypan blue staining or electrolyte leakage measurements.

• Co-Immunoprecipitation (Co-IP) & BiFC: Tests predicted perturbations in protein-protein interactions (e.g., with chaperones, downstream partners).

  • Protocol: Co-express tagged NBS-LRR (e.g., FLAG-tagged) and partner protein (e.g., MYC-tagged) in N. benthamiana. Harvest tissue, lyse in non-denaturing buffer. Incubate lysate with anti-FLAG resin. Wash, elute, and analyze by immunoblotting for both tags. For BiFC, fuse NBS-LRR and partner to split-YFP fragments and visualize reconstituted fluorescence via confocal microscopy.

• Thermal Shift Assay (DSF): Validates predictions about mutation-induced structural stability changes.

  • Protocol: Mix 5 µM purified protein with 5X SYPRO Orange dye in a final volume of 20 µL. Use a real-time PCR machine to ramp temperature from 25°C to 95°C at 1°C/min, monitoring fluorescence. Calculate the melting temperature (T_m) from the inflection point of the unfolding curve.

4. Visualizing the Integrated Validation Workflow

5. The Scientist's Toolkit: Key Research Reagents

Table 3: Essential Reagents for NBS-LRR Model Validation

Reagent / Material	Function / Purpose	Example Product/Catalog
Phusion High-Fidelity DNA Polymerase	Error-free PCR for site-directed mutagenesis and cloning.	Thermo Fisher Scientific F530L
NNK Degenerate Codon Primers	For saturation mutagenesis to explore all amino acid substitutions.	Custom synthesized, HPLC-purified.
GST-Sepharose 4B Resin	Affinity purification of recombinant GST-tagged NBS-LRR proteins for in vitro assays.	Cytiva 17075605
γ-³²P-ATP (3000 Ci/mmol)	Radioactive tracer for sensitive measurement of nucleotide hydrolysis kinetics.	PerkinElmer NEG003H
Polyethylenimine (PEI) Cellulose TLC Plates	Separation of nucleotide products (ATP vs. ADP/Pi) in hydrolysis assays.	Merck 1.05579
SYPRO Orange Protein Gel Stain (5000X)	Fluorescent dye for thermal shift assays to measure protein stability.	Thermo Fisher Scientific S6650
pBIN19-35S Binary Vector	Standard plant transformation vector for transient expression in N. benthamiana.	Addgene plasmid #
Anti-GFP Nanobody Agarose	High-affinity resin for Co-IP of GFP-tagged NBS-LRR proteins and interactors.	Chromotek gta-20
Trypan Blue Stain (0.4%)	Histochemical staining to visualize plant cell death phenotypes.	Sigma-Aldrich T8154

Optimizing Force Field Parameters for Nucleotide-Protein Interactions

Understanding the intrinsic dynamics of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins is crucial for elucidating plant immune signaling mechanisms and developing novel disease resistance strategies in agriculture. These proteins act as molecular switches, their conformational states dictated by nucleotide (ADP/ATP) binding and hydrolysis. A precise computational model of nucleotide-protein interactions is therefore foundational. This guide details the optimization of Molecular Mechanics (MM) force field parameters to accurately simulate these interactions, a critical step within a broader thesis investigating the allosteric communication and activation pathways in NBS-LRR proteins.

Theoretical Foundations and Parameterization Targets

The accuracy of Molecular Dynamics (MD) simulations hinges on the force field's ability to describe bonded and non-bonded interactions. For nucleotide-protein systems, key targets for optimization include:

• Partial Atomic Charges: For ATP, ADP, and key protein residues (Walker A, Walker B motifs, Sensor-1, RNGS/D motifs) in different protonation states.
• Torsional Parameters: For dihedral angles in the nucleotide phosphates (α, β, γ) and the ribose ring (puckering), which are critical for binding mode and hydrolysis.
• Non-bonded Parameters (LJ): For phosphorus and bridging oxygen atoms in the phosphate chain, and for magnesium ions (Mg²⁺) which are essential co-factors.
• Bonded Parameters for Metal Ions: Specifically for Mg²⁺ coordination to phosphate oxygens and water molecules.

Core Optimization Methodologies: A Detailed Protocol

Protocol: Quantum Mechanics (QM) Derivation of Partial Charges

Objective: Obtain accurate electrostatic potential (ESP) derived charges for nucleotides bound to relevant protein fragments.

• System Preparation: Isolate the nucleotide (ATP/ADP) and key coordinating residues (e.g., Lys, Ser, Asp) from a high-resolution NBS-LRR crystal structure (e.g., PDB ID: 6DUH).
• Conformation Sampling: Generate multiple conformations of the nucleotide-protein fragment cluster using conformational search or short MD in implicit solvent.
• QM Calculation: For each conformation, perform geometry optimization and subsequent single-point energy calculation at the B3LYP/6-31G* level of theory in a vacuum.
• ESP Fitting: Use the Merz-Singh-Kollman (MK) or CHelpG scheme to fit atomic charges to the calculated electrostatic potential.
• Averaging and Assignment: Average the fitted charges across multiple conformations and assign them to the corresponding atom types in the force field topology file (e.g., .prmtop for AMBER, .top for CHARMM/GROMACS).

Protocol: Torsional Parameter Optimization via Potential Energy Surface (PES) Scanning

Objective: Refine dihedral parameters to match QM rotational energy profiles.

• Dihedral Selection: Identify the central dihedral angle for optimization (e.g., O5'-C5'-C4'-C3' in ribose, or O-P-O-P in phosphate chain).
• QM PES Scan: Constrain the target dihedral in 15-30° increments over 360°. At each step, perform a constrained geometry optimization and energy calculation at the MP2/cc-pVDZ level, subtracting the energy of the minimum.
• MM PES Scan: Perform an identical scan using the initial force field parameters.
• Parameter Fitting: Use a non-linear least squares algorithm (e.g., in parmed or fldiff) to adjust the dihedral force constants (Vn) and phase shifts (γ) to minimize the difference between the QM and MM energy profiles.
• Validation: Perform a 2D PES scan on a coupled dihedral pair to ensure transferability.

Protocol: Binding Free Energy Validation (Alchemical Free Energy Perturbation)

Objective: Validate optimized parameters by computing the relative binding free energy (ΔΔG) of ATP vs. ADP to an NBS-LRR protein domain.

• System Setup: Build simulation systems for the protein complexed with ATP and ADP separately, solvated in TIP3P water with 150 mM NaCl.
• Topology Preparation: Create dual-topology hybrid structures for the alchemical transformation ATP → ADP.
• Simulation Run: Using software like OpenMM or GROMACS, run a series of λ-windows (e.g., 12 windows) where the ligand gradually morphs from ATP to ADP. Use a soft-core potential for van der Waals interactions.
• Analysis: Use the Multistate Bennett Acceptance Ratio (MBAR) or Thermodynamic Integration (TI) to calculate ΔΔG_bind from the collected data.
• Benchmark: Compare the computed ΔΔG_bind with experimental data (e.g., from Isothermal Titration Calorimetry) or high-level QM/MM calculations.

Table 1: Comparison of Key Optimized vs. Standard Force Field Parameters (Example)

Parameter Type	Atom/Dihedral	Standard FF (e.g., ff14SB)	Optimized Value	Target (QM/Expt.)	% Improvement
Partial Charge	ATP γ-Phosphate (Pγ)	+1.60 e	+1.72 e	+1.70 e (B3LYP)	~12%
Dihedral (Vn)	Ribose ν2 (C1'-C2'-C3'-C4')	V1=0.18, V2=0.25, V3=0.20	V1=0.15, V2=0.30, V3=0.22	MP2 Scan	Improved sugar pucker distribution
LJ Radius (σ)	Mg²⁺ (in SPC/E water)	1.41 Å	1.33 Å	1.34 Å (Expt.)	0.7%
LJ Energy (ε)	Phosphate O (bridging)	0.21 kcal/mol	0.18 kcal/mol	Fitted to hydration free energy	15% better hydration

Table 2: Validation Metrics for Optimized Parameters on NBS-LRR Test System

Validation Metric	Standard FF Result	Optimized FF Result	Experimental Reference	Notes
ATP-ADP ΔΔG_bind (kcal/mol)	-4.2 ± 1.0	-2.1 ± 0.8	-2.4 ± 0.3 (ITC)	Closer to expt. value
Mg²⁺-O (ATP) Avg. Distance (Å)	2.05 ± 0.10	1.98 ± 0.08	1.95 ± 0.05 (Crystal)	Improved coordination geometry
Nucleotide RMSD after 100ns (Å)	1.85	1.22	N/A	Enhanced binding pose stability
Protein Domain Twist Angle (°)	15.3 ± 3.5	22.1 ± 2.8	~24 (SAXS)	Better reproduces active state

Visualization of Workflows and Relationships

Title: Force Field Optimization Workflow for NBS-LRR Study

Title: NBS-LRR Activation Pathway & Computational Target

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials and Tools for Parameter Optimization

Item (Vendor Example)	Function & Relevance
High-Resolution NBS-LRR Structure (PDB: 6DUH, 4O7R)	Template for building nucleotide-protein fragment clusters and initial simulation systems.
QM Software (Gaussian 16, ORCA, Psi4)	Performs high-level electronic structure calculations (ESP, PES) to generate target data for parameter fitting.
MD/FF Software Suite (AMBER, CHARMM, GROMACS)	Provides the simulation engine and force field infrastructure where new parameters are implemented and tested.
Parameter Fitting Tool (parmed, fftool, ForceBalance)	Specialized software or scripts to algorithmically adjust force constants to match QM target data.
Alchemical FEP Plugin (PMX, FEP+)	Enables rigorous binding free energy calculations (ΔΔG) for ATP vs. ADP, a critical validation step.
Benchmark Dataset (CHARMM-DB, MoDEL)	Repository of experimental protein-nucleotide complex structures and dynamics for comparative validation.
Visualization/Analysis (VMD, PyMOL, MDTraj)	For monitoring simulations, analyzing geometries (Mg²⁺ coordination), and calculating RMSD, distances, and angles.
High-Performance Computing (HPC) Cluster	Essential computational resource for running extensive QM calculations and long-timescale MD simulations (µs-scale).

Benchmarking and Broader Impact: Validating NBS-LRR Dynamics Against Related Immune Sensors

This whitepaper provides a technical dissection of the intrinsic dynamic mechanisms of Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR or NLR) proteins, framed within a broader thesis investigating how conformational dynamics govern immune receptor activation. The core hypothesis posits that the signaling specificities and downstream outcomes of different NLR families (NBS-LRRs, represented by plant NLRs and animal NLRPs/NLRCs) are fundamentally encoded in their distinct patterns of conformational flexibility, oligomerization kinetics, and signalosome assembly. Comparative dynamics analysis is therefore critical for understanding innate immunity and harnessing NLRs for therapeutic intervention.

Core Structural Domains and Comparative Architecture

All NLRs share a tripartite domain architecture but exhibit family-specific variations that dictate their dynamics.

Domain	NBS-LRR (Plant/Animal)	NLRC Family (e.g., NAIP/NLRC4)	NLRP Family (e.g., NLRP3)
Effector Domain	Variable (TIR, CC, RPW8)	Caspase Recruitment Domain (CARD)	Pyrin Domain (PYD)
Nucleotide-Binding Domain (NBD/NACHT)	Central ATPase; "ON" (ATP) vs "OFF" (ADP) states.	High ATP hydrolysis rate; regulated by NAIPs.	Low intrinsic ATPase activity; requires licensing.
Leucine-Rich Repeats (LRR)	Sensor domain; autoinhibitory in "OFF" state.	Sensor domain; interacts with NAIP-ligand complex.	Sensor domain; interacts with NEK7 and cellular disruptors.
Key Oligomeric Interface	NBD-LRR coupling; homo-oligomerization.	NBD-NBD helical domain interface (HD1/HD2).	NBD-NBD interface; nucleated by PYD-PYD interactions.

Quantitative Dynamics: Activation Metrics and Kinetics

Recent biophysical studies yield quantifiable parameters for comparative dynamics.

Table 1: Comparative Dynamics Metrics of Representative NLRs

Parameter	NBS-LRR (e.g., Arabidopsis ZAR1)	NLRC4 (Activated by NAIP5/Flagellin)	NLRP3 (Activated by Nigericin/ATP)
Activation Trigger	Direct/indirect pathogen effector recognition.	NAIP ligand binding nucleates oligomerization.	Cellular disruption (K+ efflux, ROS, mtDAMPs).
Oligomeric State	Wheel-like pentamer (resistosome).	Canonical 11- or 12-mer "inflammasome" disk.	Large, speck-like oligomer (variable size).
Activation Time (in vitro)	Seconds-minutes upon effector/ATPγS addition.	<60 seconds upon NAIP/ligand addition.	Minutes to hours (requires priming/licensing).
Critical Concentration for Oligomerization	~0.5-1.0 µM (for purified, primed protein).	~0.1-0.3 µM (with nucleating NAIP complex).	Highly variable; cellular context-dependent.
ATP Turnover Rate (kcat)	~0.5-2 min⁻¹ (slow hydrolysis, stable "ON" state).	~5-10 min⁻¹ (rapid hydrolysis, dynamic assembly).	~0.1 min⁻¹ (very slow, regulatory rather than powering).
Primary Downstream Output	Ca²⁺ influx, cell death (via channel or enzyme activity).	Caspase-1 activation → IL-1β/IL-18 maturation, pyroptosis.	Caspase-1 activation → inflammation, pyroptosis.

Experimental Protocols for Dynamics Analysis

Protocol 1: Size-Exclusion Chromatography coupled to Multi-Angle Light Scattering (SEC-MALS) for Oligomeric State Determination.

• Purpose: To determine the absolute molecular weight and oligomeric state of NLR proteins in different nucleotide states.
• Method: 1) Purify recombinant NLR protein (e.g., NLRC4, NLRP3 NACHT-LRR). 2) Pre-incubate protein (50 µM) in buffer with 1 mM ADP (OFF state) or ATPγS (non-hydrolyzable ON state analog). 3) Inject sample onto analytical SEC column (e.g., Superdex 200 Increase) pre-equilibrated with corresponding nucleotide buffer. 4) Eluent flows through in-line UV detector, MALS detector, and differential refractometer. 5) Use ASTRA or equivalent software to calculate absolute molecular weight from light scattering data, independent of shape.

Protocol 2: Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS) for Conformational Dynamics Mapping.

• Purpose: To identify regions of differential flexibility and conformational changes upon ligand/nucleotide binding.
• Method: 1) Dilute NLR protein (10 pmol) into D₂O-based exchange buffer for varying timepoints (3s to 2h). 2) Quench exchange with low pH/pH 2.5 buffer on ice. 3) Digest with immobilized pepsin column. 4) Analyze peptides via liquid chromatography-tandem mass spectrometry (LC-MS/MS). 5) Compare deuteration rates between conditions (e.g., ADP vs. ATPγS, +/- binding partner). Decreased deuteration indicates stabilization or burial; increased deuteration indicates increased flexibility or exposure.

Protocol 3: Single-Molecule Förster Resonance Energy Transfer (smFRET) for Real-Time Conformational Tracking.

• Purpose: To observe individual NLR molecules transitioning between conformational states.
• Method: 1) Engineer cysteines into specific domains of NLR (e.g., NBD and LRR) for site-specific labeling with donor (Cy3) and acceptor (Cy5) fluorophores. 2) Purify and label protein. 3) Immobilize single molecules on a PEG-passivated slide via a His-tag. 4) Image using total internal reflection fluorescence (TIRF) microscopy. 5) Monitor FRET efficiency over time under different nucleotide conditions to visualize stochastic transitions between "OFF" (low/high FRET) and "ON" (high/low FRET) states.

Pathway and Workflow Visualizations

Diagram Title: Comparative NLR Family Activation Pathways

Diagram Title: HDX-MS Workflow for Dynamics Mapping

The Scientist's Toolkit: Key Research Reagent Solutions

Reagent/Material	Function in NLR Dynamics Research	Example/Supplier
Non-hydrolyzable Nucleotide Analogs (ATPγS, AMP-PNP)	To lock NLRs in active, ATP-bound conformational states for structural and biophysical studies.	Sigma-Aldrich, Jena Bioscience
MALS-Compatible SEC Buffers	For accurate oligomeric state determination via SEC-MALS; must be particle-free and compatible with detectors.	Malvern Panalytical protocols
Deuterium Oxide (D₂O) for HDX	The exchange solvent for probing backbone amide hydrogen accessibility and dynamics.	Cambridge Isotope Laboratories
Site-Directed Mutagenesis Kits	To introduce cysteine residues for fluorophore labeling or alanine mutations to probe functional residues.	NEB Q5 Site-Directed Mutagenesis Kit
Maleimide-Activated Fluorophores (Cy3, Cy5)	For site-specific covalent labeling of engineered cysteines for smFRET experiments.	Cytek dyes, GE Healthcare
Caspase-1 FLICA Probe	Fluorescent inhibitor probe to detect active inflammasome formation in cellular assays.	ImmunoChemistry Technologies
NLRC4/NAIP Co-expression Systems	Baculovirus or mammalian systems to produce the activating hetero-complex for in vitro reconstitution.	Custom Bac-to-Bac systems (Thermo Fisher)
NLRP3 Activators (Nigericin, ATP)	Pharmacological agents to induce canonical NLRP3 inflammasome formation in cellular models.	InvivoGen

This whitepaper situates the comparative analysis of plant Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) proteins, commonly known as R proteins, and the mammalian NOD-like receptor family pyrin domain containing 3 (NLRP3) inflammasome within a broader thesis investigating the intrinsic dynamics mechanisms of NBS-LRR proteins. The core premise is that despite divergent evolutionary trajectories, plant R proteins and mammalian NLRs share a conserved NBS-LRR structural architecture and analogous activation principles, serving as a paradigm for cross-kingdom validation of innate immune receptor function. Understanding the shared mechanistic logic—from autoinhibited states to ligand-induced oligomerization and signalosome assembly—provides profound insights into the fundamental biophysics of immune sensing and offers novel avenues for therapeutic intervention, particularly in inflammasome-driven diseases.

Structural and Functional Homology: A Quantitative Comparison

Table 1: Core Structural and Functional Parameters of Plant R Proteins vs. NLRP3

Parameter	Plant NBS-LRR R Proteins (e.g., ZAR1, NRG1)	Mammalian NLRP3 Inflammasome
Domain Architecture	N-terminal CC/TIR, NB-ARC (NBD+HD1+WH), LRR	N-terminal PYD, NACHT (NBD+HD1+WH+HD2), LRR
Oligomeric State (Inactive)	Monomeric (auto-inhibited)	Monomeric (auto-inhibited)
Activation Signal	Pathogen effector recognition (direct/indirect)	PAMPs/DAMPs (K+ efflux, ROS, lysosomal disruption)
Activation Nucleotide State	ADP-bound (inactive) → ATP-bound (active)	ADP-bound (inactive) → ATP-bound (active)
Active Signalosome	Resistosome (e.g., ZAR1 wheel-like pentamer)	NLRP3-ASC-Caspase-1 Inflammasome (oligomeric speck)
Key Downstream Output	Ca2+ influx, MAPK activation, HR cell death	Cleavage of pro-IL-1β/18, Gasdermin D, pyroptosis
Regulatory Proteins	SGT1, HSP90, RIN4	NEK7, SGT1, HSP90, TXNIP
Typical Assembly Size	~1.5-3.5 MDa complex (size varies)	>1 MDa complex

Experimental Protocols for Cross-Kingdom Mechanistic Validation

Protocol: Recombinant Expression andIn VitroReconstitution of Activation

Aim: To compare the ATPase activity and oligomerization of purified plant R and NLRP3 NACHT/NB-ARC domains. Materials: Recombinant His-tagged proteins, size-exclusion chromatography (SEC) columns, fluorescent ATP analog (e.g., Mant-ATP), liposomes (for NLRP3 activators like MSU). Method:

• Express proteins in insect or mammalian expression systems to ensure proper folding.
• Purify via nickel-affinity and gel-filtration chromatography.
• Perform ATP hydrolysis assays using a colorimetric phosphate assay kit. Incubate protein (5 µM) with ATP (1 mM) in buffer at 25°C/37°C. Measure free phosphate at 620nm over 60 min.
• For oligomerization, incubate protein with ATPγS (non-hydrolyzable analog) and subject to SEC-MALS (Multi-Angle Light Scattering) to determine molecular weight shifts.
• For NLRP3, incorporate an activation step by incubating with NLRP3-activating liposomes (e.g., containing cholesterol crystals mimic) prior to SEC-MALS.

Protocol: Cross-Kingdom Chimeric Domain Swapping

Aim: To test functional complementation by swapping homologous domains. Method:

• Construct chimeric genes where the NB-ARC domain of a plant R protein (e.g., Arabidopsis ZAR1) replaces the NACHT domain of NLRP3 in an expression vector.
• Co-transfect the chimera along with ASC and pro-Caspase-1 into HEK293T NLRP3 knockout cells.
• Activate with a standard NLRP3 activator (e.g., nigericin).
• Measure functional output via IL-1β ELISA in supernatant and ASC speck formation assay (microscopy).

Protocol: Cryo-EM Analysis of Pre- and Post-Activation States

Aim: To resolve and compare the structural dynamics of activation. Method:

• Prepare samples of (a) plant resistosome (e.g., ZAR1-RKS1-PBL2UMP complex), (b) inactive NLRP3, and (c) activated NLRP3-ASC-Caspase-1 complex.
• Apply 3 µL of sample to glow-discharged cryo-EM grids, blot, and plunge-freeze in liquid ethane.
• Collect data on a 300 keV cryo-electron microscope (e.g., Titan Krios). Target 50,000 movies per sample at a magnification of 105,000x.
• Process using RELION or cryoSPARC: patch motion correction, CTF estimation, particle picking, 2D/3D classification, and high-resolution refinement.
• Compare the conformational changes in the NBD/HD1/WH subdomains between inactive and active states across kingdoms.

Signaling Pathway and Experimental Workflow Visualizations

Diagram Title: Conserved activation pathways of plant R proteins and NLRP3.

Diagram Title: Cross-kingdom validation experimental workflow.

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Reagents for Cross-Kingdom NBS-LRR/NLRP3 Research

Reagent / Material	Function in Research	Example Product / Identifier
HEK293T NLRP3-KO Cells	Cellular background for functional reconstitution & chimera assays without endogenous NLRP3 interference.	Invitrogen (Thermo Fisher), KNOCKOUT cell lines.
MANT-ATP (2’/3’-O-(N-Methylanthraniloyl)adenosine-5’-triphosphate)	Fluorescent ATP analog for real-time monitoring of nucleotide binding and hydrolysis kinetics.	Jena Bioscience, NU-901.
Recombinant SGT1/HSP90 Complex	Essential chaperone complex for in vitro folding and stabilization of both plant R and NLRP3 proteins.	Novus Biologicals, recombinant proteins.
ASC Speck Formation Assay Kit	Visualize and quantify active inflammasome assembly in mammalian cells via microscopy/flow cytometry.	Invivogen, ASC-Citrine reporter kit.
Liposome-based NLRP3 Activators	Provide physiologically relevant membrane-derived signals (e.g., cholesterol crystals) for in vitro NLRP3 activation.	Avanti Polar Lipids, custom formulations.
cryo-EM Grids (UltraFoil)	Gold support films with optimal hole size and stability for high-resolution cryo-EM sample preparation.	Quantifoil, R1.2/1.3 Au 300 mesh.
ATPase/GTPase Colorimetric Assay Kit	Quantify phosphate release to measure enzymatic activity of NACHT/NB-ARC domains.	Innova Biosciences, PiColorLock Gold.
Cross-Kingdom Antibody Panel	Detect plant R proteins (e.g., anti-ZAR1) and NLRP3 components (anti-NLRP3, anti-ASC) in various systems.	Custom from vendors like Agrisera (plant) & Cell Signaling (mammalian).

This whitepaper provides an in-depth technical analysis of Stimulator of Interferon Genes (STING) protein as a paradigm for nucleotide-driven sensing. The mechanisms elucidated herein are framed within the broader thesis research on Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) protein intrinsic dynamics. NBS-LRR proteins, central to plant and animal innate immunity, share a fundamental operational logic with STING: the use of a nucleotide-binding domain to actuate large-scale conformational changes upon ligand recognition. STING serves as a masterclass in allosteric signaling, where binding of the cyclic dinucleotide (CDN) second messenger cGAMP induces a 180° rotation of the ligand-binding domain, dimerization, and subsequent high-order oligomerization for downstream TBK1/IRF3 recruitment. Understanding these precise, nucleotide-gated motions in STING provides a critical blueprint for deconvoluting the more complex and heterogeneous conformational landscapes of NBS-LRR proteins, which remain less tractable. This guide dissects the STING mechanism to establish a foundational framework for probing NBS-LRR dynamics, with direct implications for therapeutic intervention across immunology and plant pathology.

Structural Mechanism of STING Activation

STING is an endoplasmic reticulum (ER)-membrane protein that functions as a direct sensor of cytosolic CDNs, including 2'3'-cGAMP. The resting state is a dimer. Upon CDN binding, the ligand-binding domain (LBD) undergoes a dramatic rotation, transitioning from an "open" to a "closed" conformation. This closure creates a composite platform for the recruitment and activation of TANK-binding kinase 1 (TBK1). TBK1 then phosphorylates the STING C-terminal tail, creating a docking site for Interferon Regulatory Factor 3 (IRF3). IRF3 is subsequently phosphorylated by TBK1, dimerizes, and translocates to the nucleus to drive type I interferon gene expression.

Concomitant with this, activated STING dimers oligomerize into higher-order assemblies, a process critical for robust signal amplification. This oligomerization is facilitated by polymerization of the C-terminal tail following its phosphorylation. The entire cascade is a direct consequence of the nucleotide-induced conformational switch.

Table 1: Key Biophysical and Biochemical Parameters of Human STING (hSTING) Activation

Parameter	Value / Description	Method	Significance
Kd for 2'3'-cGAMP	1.4 - 4.7 nM	Isothermal Titration Calorimetry (ITC), Surface Plasmon Resonance (SPR)	High-affinity binding, ensures sensitivity to low CDN concentrations.
LBD Rotation Angle	~180°	X-ray Crystallography, Cryo-EM	Primary conformational change driving activation.
Oligomeric State (Active)	Dimers → Linear Polymers (4+ units)	Size-Exclusion Chromatography Multi-Angle Light Scattering (SEC-MALS), Cryo-EM	Essential for signal amplification and platform formation.
TBK1 Recruitment Kd	~0.5 µM (to phosphorylated STING)	Biolayer Interferometry (BLI)	High-affinity interaction post-activation ensures specific downstream signaling.
IRF3 Phosphorylation Rate	Vmax ~12 pmol/min/µg (cell lysate)	Kinase Assay with γ-32P-ATP	Quantitative measure of pathway output potency.

Table 2: Comparison of STING with Representative NBS-LRR Proteins

Feature	STING	NLRP3 (NACHT-LRR)	MLA10 (CC-NBS-LRR)
Nucleotide Bound	CDN (cGAMP)	ATP/dATP	ATP/dATP
Sensor Domain	Ligand-Binding Domain (LBD)	LRR Domain	LRR Domain
Effector Domain	C-terminal Tail (TBK1/IRF3)	PYD (ASC inflammasome)	CC (Cell Death)
Key Conformational Change	LBD rotation & dimer closure	NACHT domain rotation	NBS domain refolding
Oligomerization Outcome	Linear polymers for signaling	Inflammasome (wheel-like)	Resistosome (pentamer)

Experimental Protocols for Key Studies

Protocol: Measuring STING-cGAMP Binding Affinity via ITC

Objective: Determine the thermodynamic parameters (Kd, ΔH, ΔS) of 2'3'-cGAMP binding to purified STING LBD. Materials: Purified STING LBD protein (≥95% pure), 2'3'-cGAMP (lyophilized), ITC buffer (20 mM HEPES pH 7.5, 150 mM NaCl), MicroCal ITC200 system. Procedure:

• Dialyze protein and ligand into identical ITC buffer.
• Centrifuge samples (14,000 x g, 10 min) to remove particulates.
• Load the syringe with 250 µM cGAMP. Load the cell with 25 µM STING LBD.
• Set experiment parameters: 19 injections of 2 µL each, 150 sec spacing, 750 rpm stirring, 25°C.
• Run a control titration (ligand into buffer) and subtract from sample data.
• Fit the integrated heat data to a one-site binding model using Origin software to extract Kd, ΔH, and n (stoichiometry).

Protocol: Visualizing STING Oligomerization via Negative Stain EM

Objective: Observe the formation of higher-order STING oligomers upon activation. Materials: Full-length human STING protein (reconstituted in liposomes or nanodiscs), 2'3'-cGAMP (10x Kd), 2% uranyl acetate, 400-mesh carbon-coated grids, Transmission Electron Microscope. Procedure:

• Incubate STING with 10 µM cGAMP for 30 min at 25°C.
• Apply 5 µL of sample to a glow-discharged grid for 60 sec.
• Blot with filter paper and wash with two drops of deionized water.
• Stain with two drops of 2% uranyl acetate, blotting immediately after the second drop.
• Air-dry and image at 50,000x magnification under 80 kV.
• Use software like RELION to perform reference-free 2D classification to identify dimeric and oligomeric species.

Protocol: Monitoring STING-Dependent IRF3 Dimerization via Native PAGE

Objective: Assess functional STING pathway activation in cellulo by detecting IRF3 dimerization. Materials: STING-WT and KO HEK293T cells, cGAMP (cell-permeable variant, e.g., 3'3'-cGAMP), Lipofectamine 2000, Lysis buffer (without SDS), Native PAGE gel (6%), Anti-IRF3 antibody. Procedure:

• Seed cells in 6-well plates. At 80% confluency, transfert with 2 µg/mL cGAMP using Lipofectamine.
• At 4-6 hrs post-transfection, lyse cells in native lysis buffer (e.g., 1% Triton X-100, protease inhibitors).
• Centrifuge at 16,000 x g for 15 min to clear debris.
• Load 30 µg of supernatant protein onto a pre-run 6% native PAGE gel. Run at 100V for 2-3 hrs at 4°C with cathode buffer containing 0.02% deoxycholate.
• Transfer to PVDF membrane and immunoblot for IRF3. The IRF3 dimer migrates slower than the monomer.

Visualization of Signaling Pathways and Workflows

Diagram 1: STING-Mediated Innate Immune Signaling Pathway

Diagram 2: STING Mechanism Deconvolution Experimental Workflow

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Reagents for STING/NBS-LRR Dynamics Research

Reagent / Material	Supplier Examples	Function in Research
Recombinant Human STING Protein (full-length & LBD)	Sino Biological, Abcam, in-house expression	For in vitro binding, structural, and biochemical studies. Crucial for ITC, SPR, and crystallization.
2'3'-cGAMP (cyclic [G(2',5')pA(3',5')p])	InvivoGen, Merck, Tocris	The native, high-potency STING agonist. Used as a gold standard ligand in all assay systems.
STING KO Cell Lines (HEK293T, THP-1, etc.)	ATCC, Sigma (Horizon Discovery)	Genetically engineered controls to confirm STING-specific effects in cellular assays.
Phospho-Specific Antibodies (p-STING S366, p-TBK1 S172, p-IRF3 S386)	Cell Signaling Technology, Abcam	Critical readouts for pathway activation in Western blot, immunofluorescence, and flow cytometry.
cGAS Activity Assay Kit	Cayman Chemical, BioVision	Measures cGAMP production in vitro to link upstream DNA sensing to STING activation.
TBK1/IKKε Inhibitor (e.g., BX795, MRT67307)	MedChemExpress, Selleckchem	Pharmacological tools to dissect TBK1-dependent and -independent STING functions.
STING Fluorescent Reporters (e.g., IFN-β-Luc, ISRE-Luc)	Promega, Qiagen, BPS Bioscience	Luciferase-based systems for high-throughput screening of STING agonists/antagonists.
Liposome/Nanodisc Reconstitution Kits	Cube Biotech, Sigma	For incorporating full-length, membrane-bound STING into a native-like lipid environment for biophysical studies.
Nucleotide Analogs (ATPγS, AMP-PNP, c-di-GMP)	Jena Bioscience, Sigma	Used in comparative studies to probe nucleotide-binding specificity of STING and NBS-LRR domains.
SEC-MALS System (HPLC + DAWN Heleos II)	Wyatt Technology	Gold standard for determining absolute molecular weight and oligomeric state of proteins in solution.

The Nucleotide-Binding Site Leucine-Rich Repeat (NBS-LRR) family of intracellular immune receptors is a cornerstone of plant innate immunity, responsible for detecting pathogen effectors and initiating robust defense responses. The central thesis of modern research in this field posits that the specific intrinsic dynamics of the NBS-LRR protein—governed by conformational equilibria between auto-inhibited (OFF) and active (ON) states—are the primary determinant of function. Validating this dynamics-function relationship is critical. Auto-activating gain-of-function (GOF) mutants, which constitutively signal in the absence of a ligand, and loss-of-function (LOF) mutants, which are inert even upon effector recognition, serve as essential case studies. This whitepaper details the experimental frameworks used to dissect these relationships, providing a technical guide for researchers and drug development professionals aiming to understand or engineer immune receptor activity.

Table 1: Comparative Analysis of Wild-Type and Mutant NBS-LRR Protein Characteristics

Parameter	Wild-Type (Resting)	Wild-Type (Activated)	Auto-Activating Mutant (GOF)	Loss-of-Function Mutant (LOF)
Cell Death Assay (HR Index)	0-1 (Baseline)	8-10 (Full HR)	7-10 (Constitutive)	0-2 (No HR)
Transcriptional Output (RPKM of PR1)	10-50	500-5000	300-4000 (Variable)	5-60
ATPase Activity (nmol/min/mg)	15-30 (Low)	150-300 (High)	100-250 (Elevated)	5-20 (Impaired)
ADP/ATP Bound Ratio (NMR)	High ADP	High ATP	High ATP	High ADP/Unchanged
Structural State (Cryo-EM)	Closed, ADP-bound	Open, ATP-bound	Partially/Full Open	Locked Closed/Misfolded
In vivo Protein Accumulation	Stable	Often Turned Over	Often Reduced (Auto-toxicity)	Variable (Stable/Unstable)
Genetic Complementarity	N/A	N/A	Dominant Negative to WT	Recessive

HR: Hypersensitive Response; RPKM: Reads Per Kilobase per Million; PR1: Pathogenesis-Related Gene 1.

Experimental Protocols for Validating Dynamics-Function Relationships

Protocol: In planta Cell Death and Immune Signaling Assay

Purpose: To quantify the functional output of mutant NBS-LRR proteins. Method:

• Construct Generation: Clone cDNA of wild-type, GOF (e.g., mutations in MHD, RNBS-D, or P-loop motifs), and LOF mutants into a strong constitutive plant expression vector (e.g., pEAQ-HT or 35S-driven vector) with a C-terminal fluorescent tag (e.g., YFP).
• Transient Agrobacterium Transformation: Transform Agrobacterium tumefaciens strain GV3101 with each construct. Resuspend cultures (OD₆₀₀ = 0.5) in infiltration buffer (10 mM MES, 10 mM MgCl₂, 150 µM acetosyringone).
• Infiltration: Infiltrate leaves of 4-week-old Nicotiana benthamiana plants. For co-expression with effector, mix strains.
• Phenotyping (24-96 hpi):
  • Hypersensitive Response (HR): Document tissue collapse visually and quantify ion leakage using a conductivity meter on leaf discs floated in water.
  • Immuno-blotting: Confirm protein expression and potential cleavage.
  • qRT-PCR: Isolate RNA from infiltrated zones, synthesize cDNA, and measure transcript levels of marker genes (e.g., PR1, FRK1).

Protocol: In vitro ATP Hydrolysis (ATPase) Assay

Purpose: To measure the enzymatic activity linked to nucleotide-dependent conformational switching. Method:

• Protein Purification: Express recombinant NBS domain (or full protein) of WT and mutants in E. coli or insect cells. Purify via affinity (His-tag) and size-exclusion chromatography.
• Reaction Setup: In a 96-well plate, mix 1 µg of purified protein in reaction buffer (20 mM Tris-HCl pH 7.5, 50 mM NaCl, 5 mM MgCl₂, 0.1 mg/mL BSA) with 1 mM ATP. Include no-protein and no-ATP controls.
• Kinetic Measurement: Use a colorimetric ATPase/GTPase assay kit (e.g., Innova Biosciences). Measure free phosphate release at 620-650 nm at 30°C over 60 minutes, taking readings every 10 min.
• Data Analysis: Calculate reaction velocity (nmol Pi/min/µg). Compare basal (ADP-bound state) and stimulated (pre-incubated with ATP) rates.

Protocol: Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS)

Purpose: To probe conformational dynamics and solvent accessibility changes in mutant proteins. Method:

• Sample Preparation: Dilute WT and mutant NBS-LRR proteins (10 µM) into deuterated buffer (10 mM phosphate, 100 mM NaCl, pD 7.4) at 4°C.
• Deuterium Exchange: Allow labeling for varying time points (10 sec to 4 hours). Quench exchange by lowering pH to 2.5 (with pre-chilled formic acid) and temperature to 0°C.
• Digestion & Analysis: Rapidly inject onto an online pepsin column for digestion. Separate peptides via UPLC and analyze with a high-resolution mass spectrometer.
• Data Processing: Use software (e.g., HDExaminer) to calculate deuterium uptake for each peptide. Differences in uptake kinetics between mutants and WT map regions of altered flexibility/stability.

Visualizing Signaling Pathways and Experimental Logic

Diagram Title: NBS-LRR Conformational States and Mutant Signaling Outcomes

Diagram Title: HDX-MS Workflow for Probing Protein Dynamics

The Scientist's Toolkit: Key Research Reagent Solutions

Table 2: Essential Materials for NBS-LRR Dynamics-Function Studies

Reagent/Material	Function & Application	Key Consideration
pEAQ-HT Expression Vector	High-yield, transient plant expression for N. benthamiana.	Minimizes gene silencing; useful for toxic auto-active mutants.
Agrobacterium GV3101 (pSoup)	Strain for plant transient transformation.	High transformation efficiency; requires helper plasmid for many binary vectors.
Colorimetric ATPase Assay Kit	Quantifies phosphate release from ATP hydrolysis.	More robust for crude lysates than radioactive assays.
HDX-MS Buffer System (D₂O)	Enables hydrogen-deuterium exchange for mass spec analysis.	Requires precise pH/pD control and temperature quench.
Nucleotide Analogs (e.g., AMP-PNP, ADP·AlF₄⁻)	Non-hydrolyzable ATP analogs or transition state mimics.	Used to trap and crystallize specific conformational states.
Anti-Tag Antibodies (α-GFP/YFP/FLAG)	Immunoprecipitation and blotting of tagged fusion proteins.	Critical for assessing mutant protein stability in planta.
Plant Cell Death Stain (Trypan Blue)	Histochemical stain for visualizing hypersensitive cell death.	Distinguishes programmed death from necrosis.
Size-Exclusion Chromatography Columns (e.g., Superdex 200)	Purifies proteins based on hydrodynamic radius.	Assesses oligomeric state changes in mutants.

Within the broader research on the intrinsic dynamics mechanisms of NBS-LRR (Nucleotide-Binding Site Leucine-Rich Repeat) proteins, a central question emerges: how do conformational dynamics encode the exquisite specificity required for pathogen ligand recognition and subsequent selection of downstream signaling pathways? These intracellular immune receptors act as molecular switches, their dynamic states dictating the transition from autoinhibition to activation, ultimately determining immune outcome. This whitepaper synthesizes current research to elucidate the principles by which dynamics govern specificity and pathway choice in NBS-LRR proteins.

The Dynamic Landscape of NBS-LRR Proteins

NBS-LRR proteins exist in a pre-activation equilibrium between "ON" and "OFF" states, stabilized by intramolecular interactions, often involving the LRR domain covering the NBS domain.

Key Structural Domains and Dynamic States

Table 1: Core Domains of Canonical NBS-LRR Proteins and Their Dynamic Roles

Domain	Primary Function	Role in Dynamics	Key Dynamic Motifs
LRR Domain	Ligand sensing & autoinhibition	Shields NBS in resting state; undergoes conformational shift upon ligand binding.	Solenoid structure; variable residues define specificity.
NBS Domain	ATP hydrolysis & signaling switch	Nucleotide-dependent conformational changes (ADP-bound=OFF, ATP-bound=ON).	NB-ARC module; P-loop, RNBS-A, RNBS-B, Kinase 2, etc.
Coiled-Coil (CC) or Toll/Interleukin-1 Receptor (TIR) N-terminal domain	Homotypic dimerization & downstream signaling	Buried in resting state; exposed & oligomerizes upon activation.	EDVID motif (CC), BB loop (TIR).

The free energy landscape of an NBS-LRR protein is not smooth but features distinct minima corresponding to these states. Pathogen effectors (ligands) function as allosteric modifiers, selectively stabilizing the active minimum.

Quantitative Dynamics of Activation

Recent HDX-MS, smFRET, and molecular dynamics simulations provide quantitative metrics on these dynamics.

Table 2: Experimentally Derived Dynamic Parameters in NBS-LRR Activation

Protein (Example)	Technique	Measured Parameter	Resting State Value	Active State Value	Reference Year
Arabidopsis ZAR1	Cryo-EM / MD	Inter-domain distance (LRR to NBS)	~15 Å	~25 Å (in resistosome)	2019-2023
Human NLRP3	HDX-MS	Deuterium uptake in NBS domain (peptide X)	45% at 60s	85% at 60s (with activator)	2022
Mouse NLRC4	smFRET	FRET efficiency between labeled domains	0.85	0.25	2021
Arabidopsis RPP1	ITC / SAXS	Kd for ligand (ATR1)	N/A (no binding)	150 nM (active allele)	2020

Experimental Protocols for Probing Dynamics

Protocol 1: Hydrogen-Deuterium Exchange Mass Spectrometry (HDX-MS) for Mapping Dynamics

Objective: To identify protein regions that undergo changes in solvent accessibility and dynamics upon ligand binding or nucleotide exchange.

• Sample Preparation: Purify recombinant NBS-LRR protein (e.g., NLRP3 NACHT domain) in ADP-bound buffer. Prepare identical samples with addition of ATPγS (non-hydrolysable ATP analog) and a specific ligand (e.g., nigericin for NLRP3).
• Deuterium Labeling: Dilute protein 10-fold into D₂O-based labeling buffer. Incubate at 4°C for varying time points (e.g., 10s, 60s, 300s, 1800s).
• Quenching & Digestion: Quench exchange by lowering pH to 2.5 and temperature to 0°C. Pass sample through an immobilized pepsin column for rapid digestion.
• LC-MS/MS Analysis: Inject peptides onto a UPLC-MS system held at 0°C. Separate peptides using a reverse-phase column. Analyze with high-resolution mass spectrometer.
• Data Processing: Use software (e.g., HDExaminer) to calculate deuterium uptake for each peptide at each time point. Compare uptake between ADP-bound and ATPγS/ligand-bound states. Regions with significant differential uptake are involved in dynamic changes.

Protocol 2: Single-Molecule FRET (smFRET) to Monitor Conformational Transitions

Objective: To observe real-time transitions between conformational states of a single NBS-LRR protein.

• Dual Labeling: Engineer cysteines into specific sites within the NBS and LRR domains. Label with maleimide-conjugated donor (Cy3) and acceptor (Cy5) fluorophores.
• Surface Immobilization: Use biotinylated antibodies specific to a non-interfering tag on the protein to immobilize molecules on a PEG-passivated, streptavidin-coated quartz slide.
• Data Acquisition: Image molecules using a total internal reflection fluorescence (TIRF) microscope. Excite donor with a 532 nm laser. Collect emission from donor and acceptor channels simultaneously at 100 ms temporal resolution.
• Analysis: Calculate FRET efficiency (E = I_A/(I_D + I_A)) for each molecule over time. Build histograms of FRET efficiencies to identify discrete states. Use hidden Markov modeling to extract transition rates between states before and after adding ATP or ligand.

Pathway Selection Through Dynamic Oligomerization

Activation triggers a major dynamic shift: the release of the N-terminal domain and its subsequent oligomerization into signaling complexes (e.g., resistosomes, inflammasomes). The specific oligomeric architecture determines the downstream signaling pathway.

NBS-LRR Activation & Signaling Pathway Decision Tree

The Scientist's Toolkit: Key Research Reagent Solutions

Table 3: Essential Reagents for NBS-LRR Dynamics Research

Reagent / Material	Function in Research	Specific Example & Rationale
Non-hydrolysable Nucleotide Analogs	Trap NBS domain in specific nucleotide-bound states for structural/dynamic studies.	ATPγS (traps active, ATP-bound state); ADP·BeF3 (mimics ATP transition state).
Cysteine-reactive Fluorophores	Site-specific labeling for smFRET or fluorescence anisotropy.	Maleimide-Cy3/Cy5: Thiol-reactive, bright, photostable FRET pair for domain dynamics.
Cross-linking Reagents	Capture transient oligomeric intermediates.	BS3 (homobifunctional NHS-ester): Crosslinks primary amines, stabilizes weak complexes for MS analysis.
Deuterium Oxide (D2O)	Solvent for HDX-MS experiments to measure backbone amide exchange rates.	>99.9% D purity essential for accurate mass shift measurements.
Nano-disc or Amphipol Systems	Membrane mimic for studying dynamics of membrane-associated NBS-LRRs (e.g., NLRP3).	MSP1E3D1 Nanodiscs: Provide a defined, soluble lipid bilayer environment.
TIRF Microscope System	Essential instrument for smFRET, allowing visualization of single molecules.	Includes 532/640 nm lasers, high-NA objective, EMCCD/sCMOS cameras, and microfluidic flow cell.
Stable Isotope-labeled Media	For producing uniformly labeled protein for NMR or quantitative MS.	Silantes 15N, 13C growth media: For E. coli or insect cell expression of labeled NBS-LRR domains.

The intrinsic dynamics of NBS-LRR proteins form the mechanistic bedrock of their function. Specificity arises not from a static lock-and-key fit but from the selective stabilization of pre-sampled conformational states by ligands, which in turn dictates the trajectory towards a specific oligomeric signaling platform. Decoding these dynamic rules is paramount for rational engineering of plant immunity and for developing targeted therapeutics against inflammatory diseases driven by dysregulated NLRs in humans. The experimental framework outlined herein provides a roadmap for such investigations.

Conclusion

The intrinsic dynamics of NBS-LRR proteins represent a fundamental paradigm for understanding immune receptor activation, where nucleotide-controlled conformational changes translate pathogen perception into defense signaling. This synthesis of foundational knowledge, advanced methodologies, troubleshooting insights, and comparative validation reveals a conserved allosteric logic with remarkable engineering potential. Future research must leverage integrative structural biology and AI-enhanced simulations to capture the full dynamic spectrum within cellular environments. The immediate implications are profound: these principles directly inform the rational design of synthetic plant NLRs for crop resilience and, critically, the targeted modulation of human NLRs like NLRP3. By understanding their dynamic switches, we can develop novel therapeutics for a wide range of inflammatory, autoimmune, and age-related diseases, moving from descriptive models to predictive design in biomedicine.
